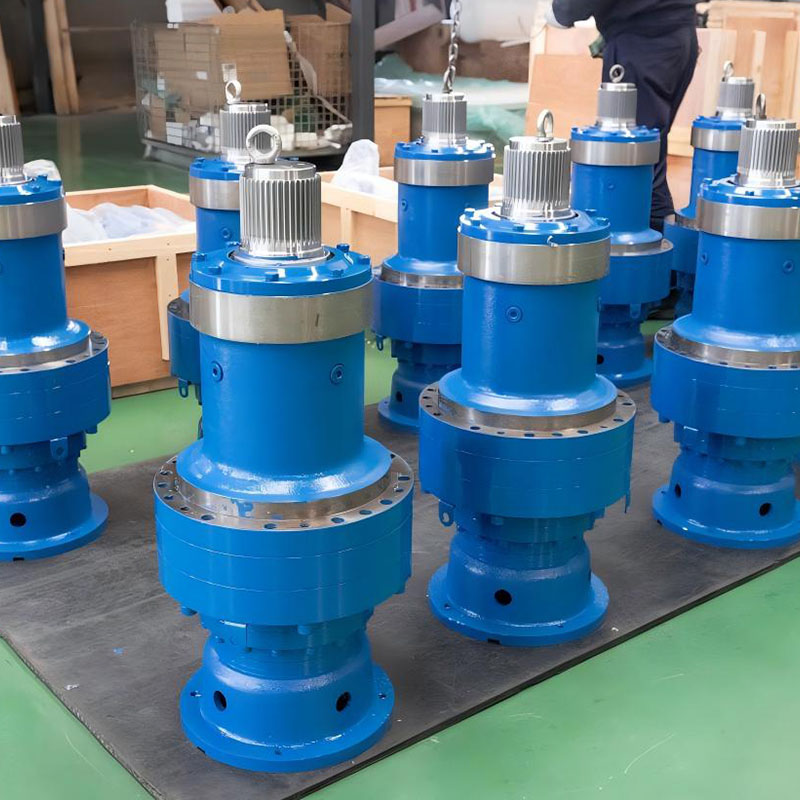

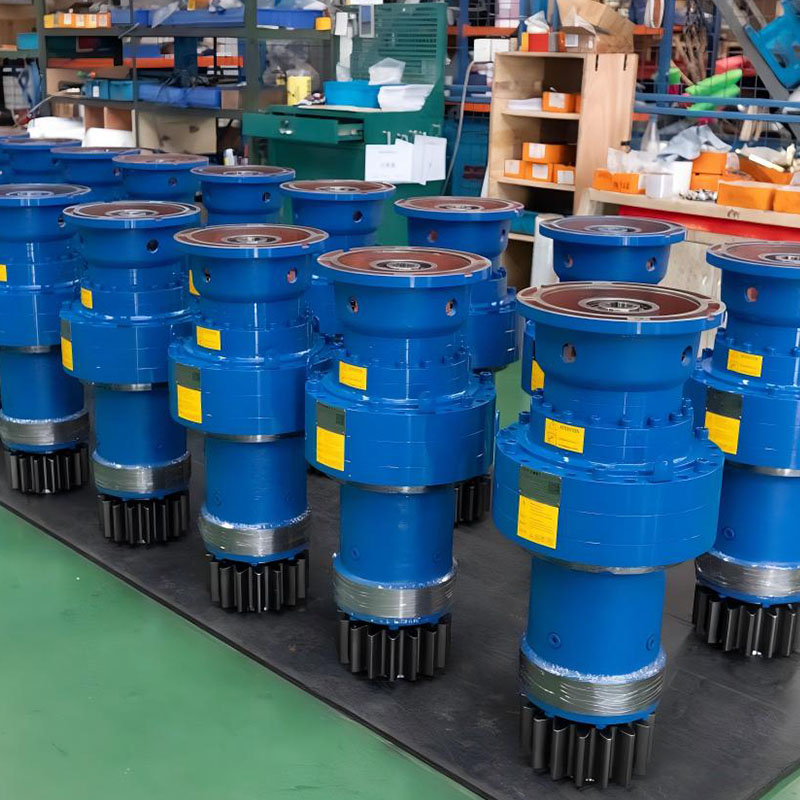

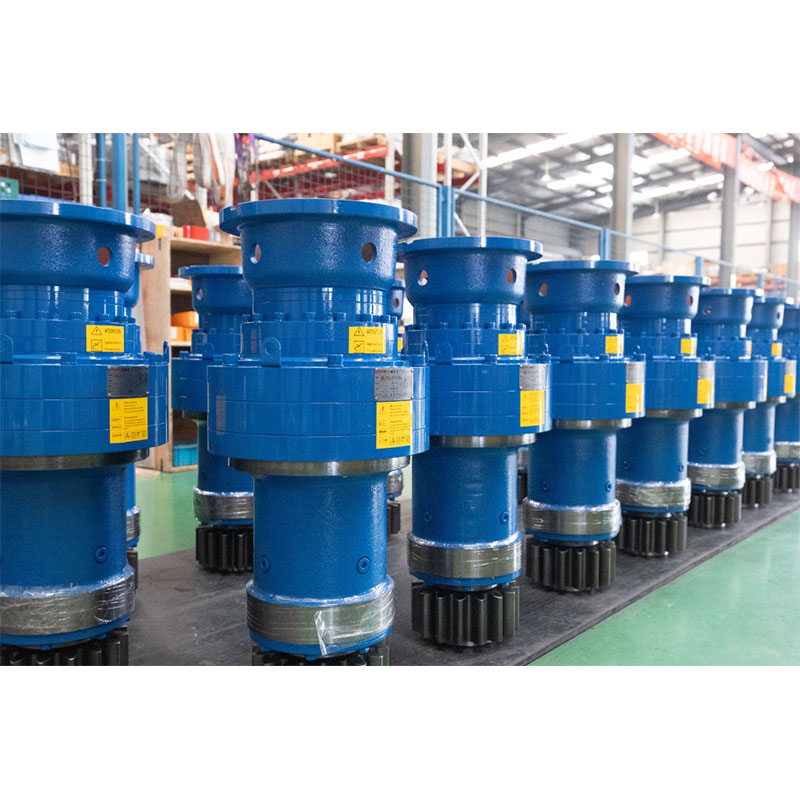

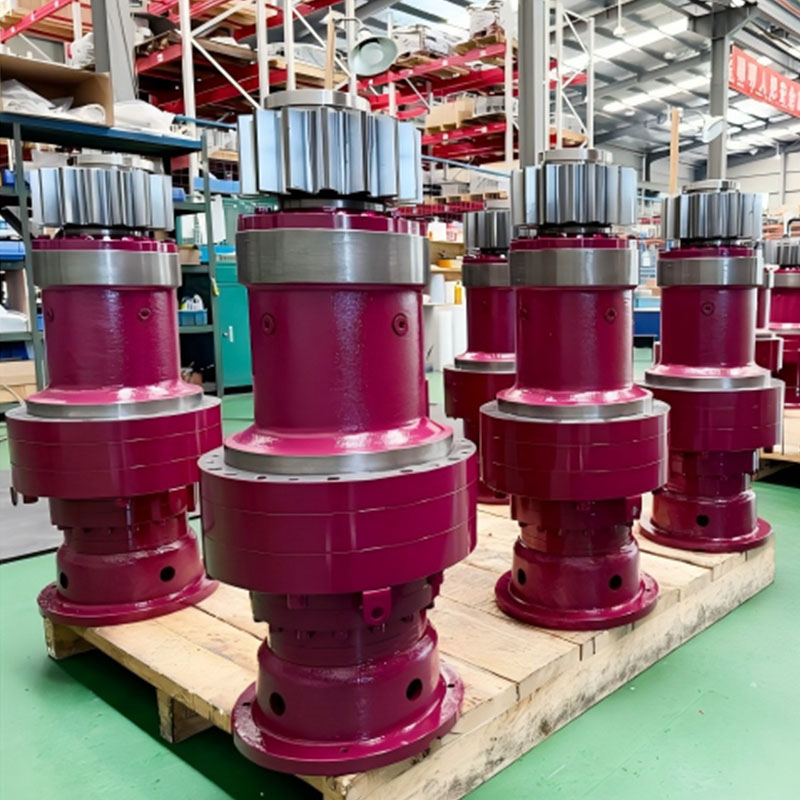

Slewing High Torque Planetary Gearbox

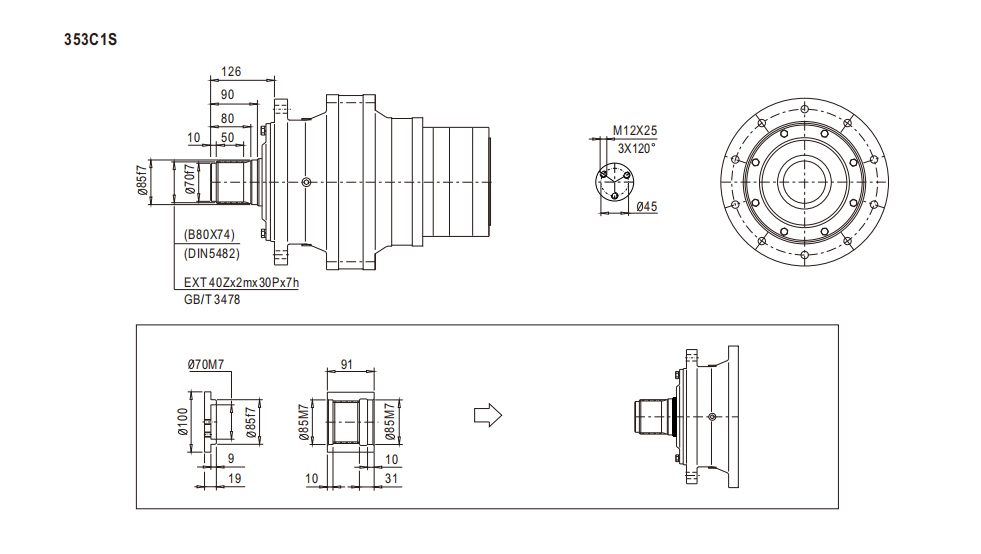

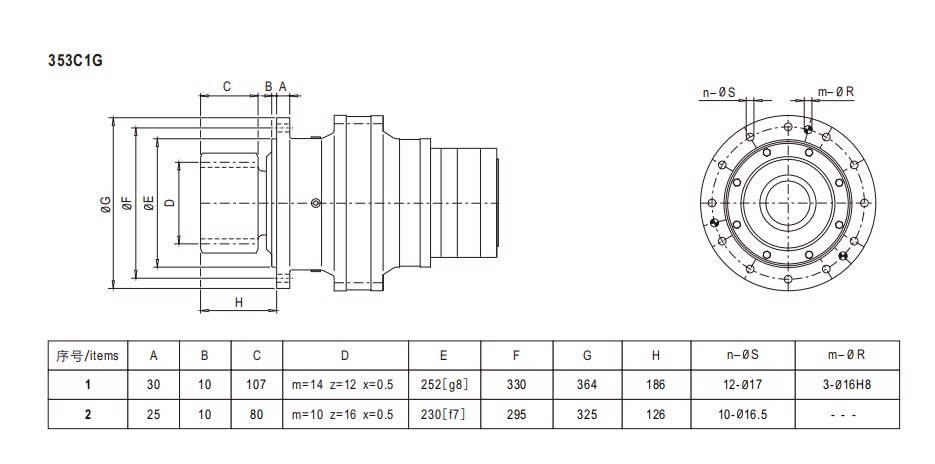

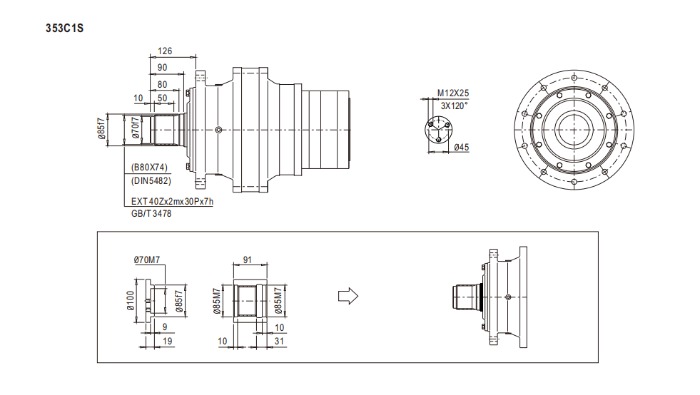

SGR N series planetary gearboxes are widely used in industrial and heavy duty applications. The planetary gearbox features compact size, low noise, excellent reliability and long service life. Linear or rectangular shaft configurations are available with male and female threads. The SGR outer shaft option (splined or cylindrical) can withstand high radial or axial loads on the output shaft. As a leading planetary gearbox manufacturer in China, planetary gearboxes are manufactured in a modular design, integrated according to customer requirements. Regarding the key components, SGR used qualified spare parts such as nodular cast iron body material, which can improve the rigidity and anti-knock performance of the gearbox. The low-speed shaft is equipped with a heavy-duty bearing that can withstand large radial loads due to proportional torque distribution. Each gear is hardened to ensure high reliability and long service life. SGR planetary gearbox has 16 models for different torque range, each model has 1-5 stages to achieve different gear ratios, in addition, SGR planetary gearbox has a wide range of high-speed designs: spur with key, hydraulic motor, electric motor. Multi-position installation, various types of fastening.

Typical Applications of High Torque Planetary Gearbox

Applications

SGR high torque planetary gearboxes are widely used in cranes, lifting equipment, slewing mechanisms and other heavy-duty industrial machinery. With high load-carrying capacity, compact construction and stable performance under heavy loads, the gearbox provides reliable power transmission for lifting, slewing and traveling mechanisms.
SGR planetary gearboxes are also suitable for drilling equipment, mining machinery and other demanding industrial applications where high torque, load capacity and reliable power transmission are required.

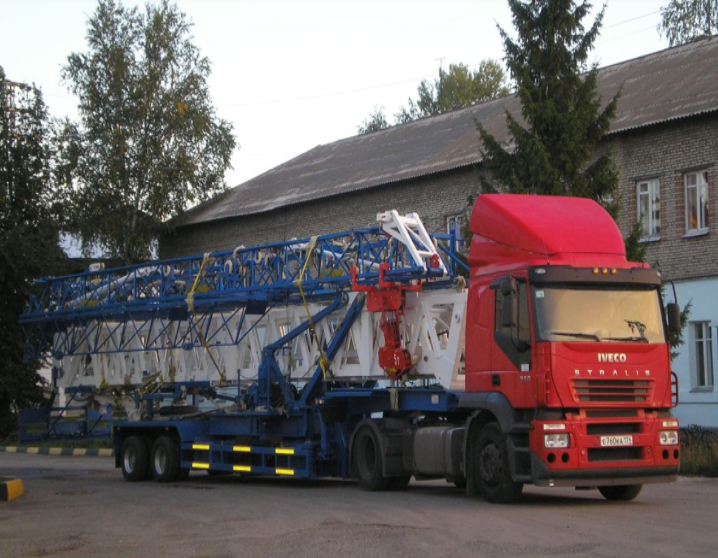

The SGR planetary gearbox has also been successfully used by customers in Russia for crane equipment and other lifting machinery, demonstrating reliable performance, long service life and stable operation under demanding working conditions.

Typical applications include:

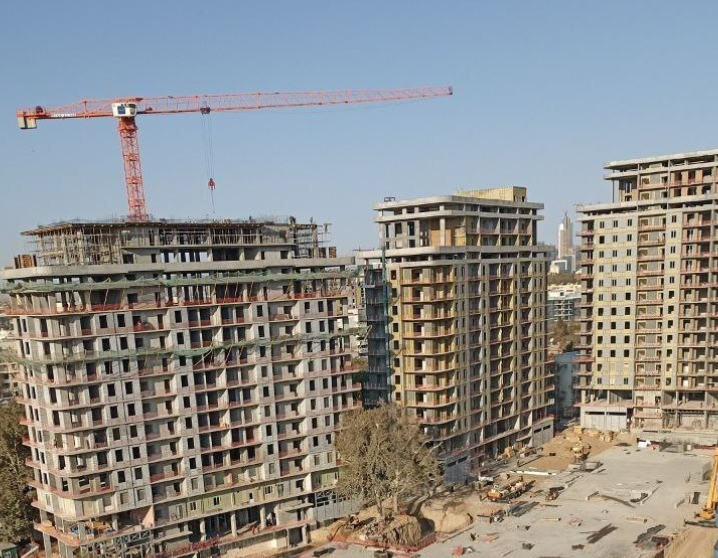

• Cranes
  Planetary gearboxes for crane lifting, slewing and traveling mechanisms.
• Lifting Equipment
  For hoisting and material-handling equipment requiring high torque and reliable power transmission.
• Slewing Mechanisms
  For rotary and slewing applications requiring compact, high-torque transmission solutions.
• Heavy-Duty Industrial Machinery
  For industrial machinery operating under high loads and demanding working conditions.
• Drilling Equipment
  For drilling machinery requiring high torque and robust transmission performance.
• Mining Machinery
  For heavy-duty mining equipment operating under high loads, vibration and demanding conditions.

Customized Planetary Gearbox Engineering

Every industrial machine has different requirements for output torque, gear ratio, mounting configuration and input/output shaft design. Therefore, SGR provides not only standard planetary gearboxes but also customized transmission solutions according to specific application requirements.
Our engineering team can evaluate your operating conditions, equipment layout and existing gearbox specifications to develop a suitable planetary gearbox configuration.
With modern manufacturing and testing equipment, including 4-axis centers, coordinate measuring machines (CMM), CNC gear grinding machines and gearbox performance test benches, SGR supports the complete product development process from engineering analysis and 3D design to testing, manufacturing and serial production.

Planetary Gearbox Replacement Solutions

Looking for a replacement for a Brevini, Bonfiglioli, Rossi or Dinamic Oil planetary gearbox?
SGR can provide alternative planetary gearbox solutions based on the technical requirements of your existing gearbox.
Our engineers can evaluate the original gearbox according to:

• Output torque
• Gear ratio
• Input and output speed
• Mounting dimensions
• Shaft configuration
• Flange dimensions
• Overall gearbox dimensions
• Operating conditions

You can send us the existing gearbox drawing, nameplate information, technical datasheet or photos. Our engineers will evaluate the requirements and recommend a suitable SGR replacement.

FAQ

1.What applications are SGR high torque planetary gearboxes suitable for?

SGR high torque planetary gearboxes are designed for demanding industrial applications where high load-carrying capacity and reliable torque transmission are required. Typical applications include lifting equipment, cranes, slewing mechanisms, drilling rigs, mining machinery and other heavy-duty equipment.

2.What is the maximum output torque of an SGR planetary gearbox?

The maximum output torque depends on the specific gearbox model, gear ratio and application requirements. SGR offers multiple planetary gearbox series covering different torque ranges and can also develop customized solutions for specific equipment requirements.

3.Can SGR manufacture customized planetary gearboxes?

Yes. SGR provides OEM and ODM planetary gearbox solutions. The gearbox can be customized according to gear ratio, input and output shaft configuration, mounting flange, housing dimensions and other application requirements.

4.Can SGR planetary gearboxes replace Brevini, Bonfiglioli, Rossi or Dinamic Oil gearboxes?

Yes. SGR can provide alternative planetary gearbox solutions for Brevini, Bonfiglioli and Rossi and gearboxes, subject to technical evaluation.
Our engineers can compare the original gearbox according to torque, gear ratio, speed, mounting dimensions, shaft configuration and operating conditions, and recommend a suitable replacement.

5.What materials are used in SGR planetary gearboxes?

SGR uses high-strength alloy steels such as 20CrMnTi for highly loaded gear transmission components. The gears undergo carburizing, hardening and precision grinding to achieve high wear resistance, strength and long service life.

6.Can SGR planetary gearboxes operate under heavy-duty conditions?

Yes. SGR planetary gearboxes are designed for demanding industrial applications. Their planetary gear structure enables effective load distribution among the planetary gears, while robust components and rigid housing construction support reliable operation under high loads, vibration and shock conditions.
