The most common gear reducer types you may want to know

As a technical manager at SGR, a long established gear reducer manufacturer with over 15 years of industry experience, I often encounter the same foundational question from engineers and procurement specialists: “What are the most common types of gear reducers, and how do I choose the right one?” The answer lies not only in understanding transmission principles but also in matching performance characteristics to real-world applications.

What are the most common gear reducer types?

In industrial machinery, gear reducers primarily fall into three major categories: planetary gear reducers, worm gear reducers, and parallel-shaft helical or bevel-helical gear reducers. Among these, planetary and worm gear reducers dominate applications requiring high torque density, compact design, or self-locking capability.

Planetary gear reducers excel in efficiency (typically 95–98%), high torque-to-size ratio, and dynamic load distribution across multiple planet gears. They are ideal for servo systems, construction equipment, and continuous-duty industrial drives.

Worm gear reducers, especially advanced types like the planar double-enveloping toroidal worm, offer high reduction ratios in a single stage, inherent mechanical self-locking, and smooth, quiet operation—making them suitable for lifting, positioning, and safety-critical systems.

At SGR, we have focused our R&D and production on precisely these two high-value segments: the N-series planetary gear reducers and the C-series planar double-enveloping  toroidal worm gear reducers, both engineered for demanding environments and long service life.

SGR’s planetary gear reducers

Our N-series planetary gear reducers represent over a decade of refinement in precision transmission technology. Designed as a direct alternative to imported brands such as Brevini, Dynamic, Rossi, and Bonfiglioli, they combine international-level design with localized support and competitive pricing.Key specifications include:

• Gear ring diameters from 200 mm to 885 mm
• Output torque up to 540,000 N·m
• Speed ratios starting fromi ≥ 3, extendable via multi-stage configurations
• Modular architecture enabling hundreds of model combinations

The input end supports round holes, splines, shafts, flanges, and integrated brakes—compatible with both hydraulic and electromagnetic motors. The output end offers even greater flexibility: solid or hollow shafts, expansion disc mounting, splined interfaces, gears, or flanges, allowing seamless integration into trenchless drilling rigs, mining conveyors, marine winches, and textile machinery.

All gears of SGR’s planetary gear reducers are made from 20CrMnTi alloy steel, carburized, quenched, and precision-ground to ensure low noise, high fatigue resistance, and multi-tooth load sharing. This results in smooth, reliable operation and mechanical efficiency exceeding 96%.

Besides, N series planetary gear reducers won the “First prize for scientific and technological progress in the gear industry” by the China Gear Industry Association in 2009 and listed among Shanghai’s High-Tech Achievement Transformation Projects, the N-series planetary gear reducers have  become a trusted choice in construction, mining, marine, and textile sectors.

 SGR’s worm gear reducers

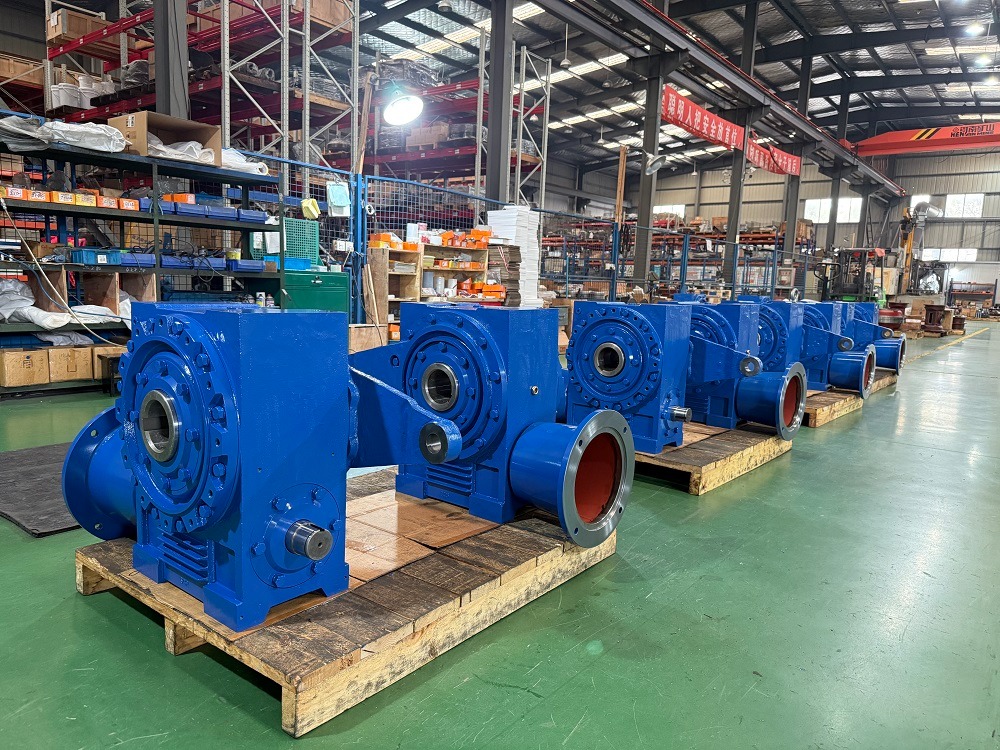

Complementing our planetary line is the C-series planar double-enveloping toroidal worm gear reducer—a transmission solution rooted in Chinese innovation and optimized through collaboration with leading universities.

Unlike conventional cylindrical worm gears, the C-series double enveloping worm gear reducers feature a toroidal worm enveloped twice by a theoretical plane, creating a multi-tooth, surface-contact mesh with the worm wheel. This design dramatically increases load capacity and transmission efficiency while reducing wear.

Technical highlights of the double enveloping worm gear reducers are :

• Center distances from 100 mm to 710 mm
• Output torque up to 160,000 N·m
• Speed ratios starting ati ≥ 10, with self-locking capability at higher ratios
• Interchangeable installation dimensions with CAVEX®-type units

The worm of the double enveloping worm gear reducers is crafted from 20CrMnTi, carburized and ground, while the worm wheel uses high-performance tin bronze, ensuring excellent anti-friction and wear-resistant properties. The result is a reducer that delivers long service life, high reliability, and enhanced mechanical safety—critical in hoisting, metallurgy, hydropower gates, and rubber calenders.

SGR has systematically developed the design, manufacturing, assembly, and testing protocols for this technology, aiming to promote a truly indigenous high-performance transmission solution. Customized key components are also available upon request.

Backed by DNV ISO 9001 certification, SGS supplier approval, and recognition as a Shanghai “Specialized, Refined, Unique, and Innovative” (SRII) enterprise, SGR remains committed to advancing gear transmission technology. Whether your application demands the high efficiency and power density of planetary drives or the robustness and self-locking safety of double-enveloping  worm gear  reducers, SGR provides engineered solutions that perform—day in, day out, under the toughest conditions.（Author, SGR, Angie Zhang）
