Product Introduction

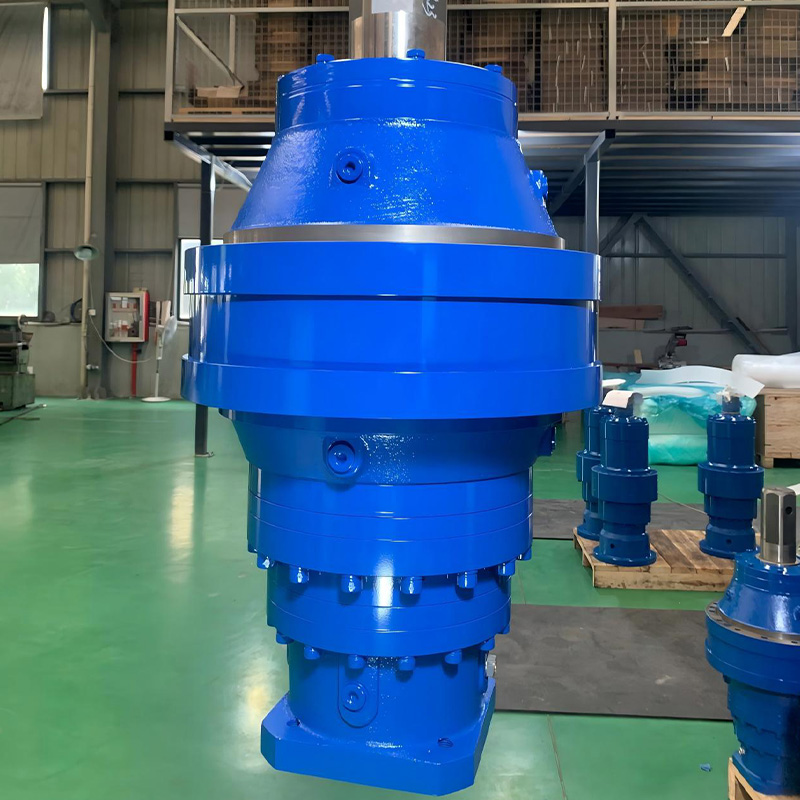

SGR planetary gearboxes for drilling rigs are designed for demanding drilling applications that require high torque, reliable power transmission and stable operation under heavy loads.
The planetary gear design distributes the transmitted load across multiple planetary gears, providing high load-carrying capacity and efficient torque transmission in a compact gearbox configuration. This makes SGR planetary gear reducers suitable for drilling equipment where high output torque and low-speed operation are required.
The SGR N Series offers a wide range of configurations, transmission ratios, mounting options and output shaft designs to meet different drilling equipment requirements. The gearbox can be configured for flange, foot or shaft mounting and customized according to the machine's torque, speed, installation and interface requirements.
SGR also provides OEM and customized planetary gearbox solutions for drilling equipment manufacturers and machinery upgrade projects.

Technical Specifications

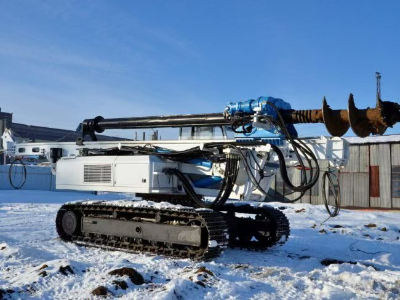

SGR planetary gearboxes have been applied to crawler long-auger drilling rigs, providing reliable torque transmission for demanding drilling operations.
The drilling rig requires a gearbox capable of transmitting high torque while maintaining stable low-speed operation under heavy working loads. The planetary gearbox provides a compact and high-load-capacity transmission solution for the drilling drive system.
With different transmission ratios, output shaft configurations and mounting options available, SGR can adapt the planetary gearbox to the mechanical interface and operating requirements of different drilling rigs.
SGR planetary gearboxes are used in industrial drilling equipment where high torque, reliable power transmission and stable low-speed operation are required，for example :

• Drilling Rigs
• Crawler Drilling Rigs
• Long-Auger Drilling Rigs
• Electric-Drive Drilling Equipment
• Hydraulic Motor-Driven Drilling Equipment
• Mining Drilling Equipment
• Heavy-Duty Industrial Machinery

Why Use a Planetary Gearbox for Drilling Rigs?

Drilling equipment typically requires high output torque, controlled rotational speed and reliable power transmission under heavy and variable loads. At the same time, the available installation space can be limited.
A planetary gearbox provides an efficient solution by distributing the transmitted load across multiple planetary gears and providing multiple points of gear engagement. This allows the gearbox to transmit high torque while maintaining a relatively compact design.
For drilling rigs and other heavy-duty drilling equipment, the appropriate planetary gearbox should be selected according to the required output torque, transmission ratio, input power, output speed, mounting configuration and operating conditions.

OEM & Custom Planetary Gearbox Solutions for Drilling Equipment

FAQ

SGR planetary gearboxes can be used for drilling rigs, crawler drilling rigs, long-auger drilling rigs, electric-drive drilling equipment, hydraulic motor-driven drilling equipment and other heavy-duty drilling machinery.

2. What is the maximum permissible torque?

The permissible torque of the applicable SGR planetary gearbox range can reach 800,000 N·m. The exact gearbox selection depends on the required torque, transmission ratio, speed, operating conditions and other technical parameters.

3. What transmission ratios are available?

The current range covers transmission ratios from 3.15 to 9000, depending on the gearbox configuration and number of stages.

4. What output shaft options are available?

Available configurations include keyed cylindrical shafts, splined shafts, hollow shafts with shrink discs and splined hollow shafts.

5. Can SGR customize a planetary gearbox for a drilling rig?

Yes. SGR provides OEM and customized planetary gearbox solutions. The gearbox can be configured according to the required torque, ratio, speed, mounting dimensions, shaft configuration and other technical requirements.

6. Can SGR replace an existing drilling gearbox?

Yes. SGR can evaluate an existing gearbox for replacement or upgrade. Customers can provide the original gearbox model, drawings, technical specifications or photos for technical evaluation.

7. What information is required to select a planetary gearbox for a drilling rig?

The key information normally includes input power, input speed, required output speed, output torque, transmission ratio, mounting arrangement, shaft dimensions, duty cycle and operating environment.

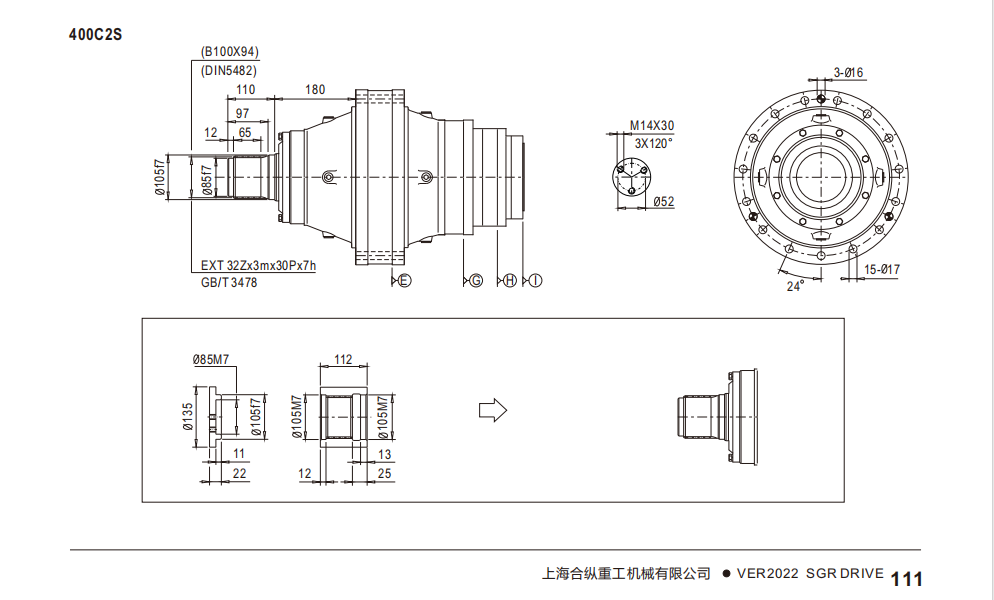

8. Can SGR provide technical drawings and 3D models?

Technical documentation such as product specifications, drawings and 3D models can be provided according to the specific project and product requirements.
