Introduction about SGR’s heavy industries gearbox solutions

In the demanding world of heavy industry—where every ton of force, every meter drilled underground, and every degree of operational safety matters—gearboxes are far more than mechanical components.

Heavy industries gearboxes are the critical power transmission cores that enable trenchless horizontal directional drilling rigs to bore kilometers beneath city streets, mining excavators to crush hard rock, metallurgical cranes to lift molten metal with precision, and mud pumps to sustain high-pressure circulation in extreme environments.

At SGR, we understand that in these applications, reliability isn’t optional—it’s non-negotiable.

For over 15 years, SGR has specialized in designing and manufacturing heavy industries gearboxes that meet the toughest global standards. Our products are trusted across sectors including oil & gas drilling, mining, petrochemical processing, metallurgy, construction machinery, and slurry handling systems, where failure is not an option.

(1) What is a heavy industries gearbox?

A heavy industries gearbox is a high-torque, high-load-capacity reduction unit engineered to operate continuously under severe conditions—extreme temperatures, shock loads, dust, moisture, and prolonged duty cycles.

Unlike standard industrial gearboxes, heavy-duty variants feature reinforced housings, precision-ground hardened gears, advanced lubrication systems, and rigorous quality control to ensure decades of trouble-free service.

 The heavy industries gearboxes must deliver high mechanical efficiency, exceptional durability, and fail-safe performance—often in remote or hazardous locations where maintenance access is limited.At SGR, our heavy industries gearboxes are built not just to function, but to excel under pressure.

(2) SGR’s two core heavy industries gearbox platforms

SGR offers two primary gearbox families, each optimized for distinct operational demands:

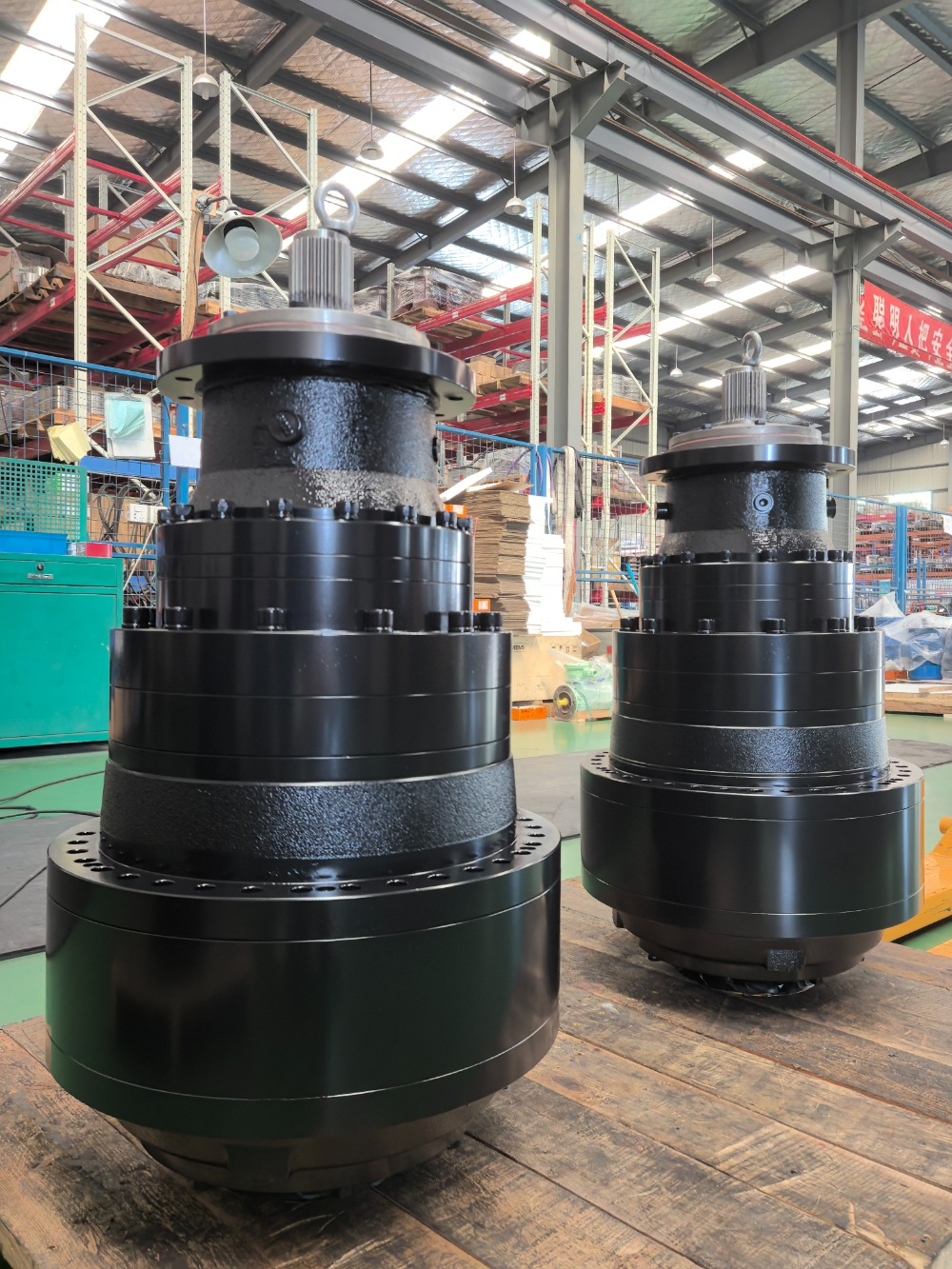

1.Heavy planetary gearbox

Designed for applications requiring high power density, compact layout, and multi-directional load distribution, SGR’s planetary gearboxes feature sun-planet-ring architecture that shares torque across multiple gear meshes simultaneously. All gears are made from 20CrMnTi alloy steel, carburized, quenched, and precision ground to AGMA/ISO Class 6 standards. This results in the following benefits:

• Smooth, low-noise operation even at high speeds
• Mechanical efficiency exceeding 96% per stage
• Exceptional resistance to shock and fatigue
• Ideal for dynamic applications like HDD drilling drives, crane slewing systems, and mud pump transmissions

2. Heavy worm gearbox

For applications prioritizing high reduction ratios, self-locking safety, and ultra-stable low-speed output, SGR’s double-enveloping worm gearboxes set a new benchmark.

The worm—crafted from 20CrMnTi, carburized, quenched, and ground—fully wraps around the worm wheel, achieving multi-tooth simultaneous contact. The worm wheel is cast from high-performance tin bronze , ensuring long-term wear resistance and thermal stability. Key advantages include:

• 30–50% higher load capacitycompared to conventional cylindrical worm pairs
• Transmission efficiency up to 85% (significantly higher than standard worm gears)
• Mechanical self-lockingat ratios above 30:1—critical for lifting and positioning safety
• Perfect for metallurgical ladle turners, vertical mixers, and hoisting winches

Both product lines are manufactured under ISO 9001-certified processes, validated by DNV and audited by SGS, ensuring consistent global quality.

(3) Real-world applications of SGR’s heavy gearboxes

SGR’s heavy industries gearboxes are not just engineered—they’re proven in the field:

• Trenchless Construction: In horizontal directional drilling (HDD) projects across Asia and the Middle East, SGR planetary gearboxes drive thrust-pullback systems with 200+ kN force, operating 20 hours/day in abrasive soil conditions—zero failures reported over 36 months.
• Mining & Mineral Processing: A leading copper mine in Chile replaced imported worm gearboxes with SGR double-enveloping units on their slurry agitators. The result? 40% longer service lifeand elimination of unplanned downtime due to overheating.
• Metallurgical Cranes: In a steel plant in Germany, SGR worm gearboxes with self-locking capability were integrated into ladle transfer cranes. Even during power outages, the mechanical lock prevented dangerous load drift—enhancing worker safety and compliance with EU Machinery Directive.
• Petrochemical Mud Pumps: Offshore drilling contractors in the North Sea rely on SGR planetary gearboxes for triplex mud pump drives, where compact size, corrosion resistance, and continuous high-torque output are essential in harsh marine environments.

Beyond product quality, SGR supports customers through every phase: detailed pre-sales engineering consultation, real-time sales coordination, and proactive after-sales tracking—including vibration analysis and oil monitoring recommendations—to maximize asset lifespan.

In heavy industries, the right gearbox doesn’t just reduce speed—it reduces risk, increases uptime, and multiplies value. For over 15 years, SGR has stood as a trusted partner to global operators who demand more than specifications—they demand certainty.With DNV and ISO 9001 certifications, precision manufacturing, and a customer-first philosophy, SGR continues to advance the performance frontier of heavy industries gearboxes.（Author,SGR, Angie Zhang）
