Precision Engineering: Controlling Backlash and Noise in the planetary worm gear System

I. The Demand for High-Precision Gear Transmission

The planetary worm gear unit represents a fusion of two powerful transmission principles, providing high torque density, significant reduction ratios, and a compact footprint. In demanding applications, the primary technical challenge is controlling internal component tolerances, specifically the meshing clearance (backlash), to ensure high transmission accuracy and simultaneously minimize Noise, Vibration, and Harshness (NVH) levels.

Shanghai SGR Heavy Industry Machinery Co., Ltd., a high-tech enterprise focusing deeply on gear transmission for over 10 years, understands this complexity. Our R&D team, composed of PhDs and senior engineers, has developed specialized technology, including the Planar Double-Enveloping Worm Gear Optimization Design System, ensuring our products follow the industry trend towards low vibration and low noise.

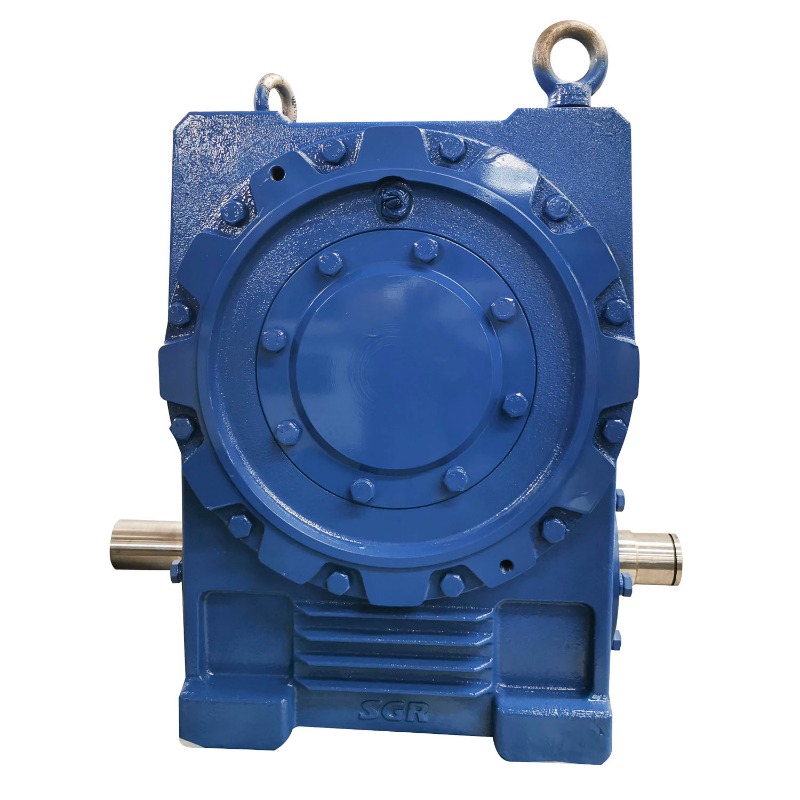

High Efficiency Double Enveloping Worm Gear Reducer

II. The Mechanics of Backlash Control

Backlash, or the circumferential clearance between mating teeth, directly impacts positioning accuracy and operational noise. Minimizing this clearance is critical for high-precision machinery.

Strategies for Zero-Backlash Assembly: backlash control in planetary worm gear systems

Effective backlash control in planetary worm gear systems requires addressing both stages of the gearbox—the planetary stage (sun gear, planet gears, and ring gear) and the worm gear stage. In the planetary stage, precision is achieved through meticulous control of the center distance between the sun and planet gears. This often necessitates the use of high-grade bearings and stringent geometric tolerances for the planet carrier and housing bores.

In the worm gear stage, backlash is fundamentally linked to the center distance between the worm and the worm wheel. Strategies for minimization include:

• Controlled Center Distance Adjustment: Utilizing eccentric input shaft sleeves or adjustable housing flanges that allow fine-tuning of the worm position during assembly.
• Split Worm Wheels: Employing a preloaded split worm wheel that forces continuous contact with the worm profile, eliminating clearance.

III. Achieving Tooth Profile and Meshing Precision

The accuracy of the tooth profile and its surface finish directly determines the smoothness of engagement and the resulting noise output. This is where advanced manufacturing is essential.

Manufacturing Techniques and Tolerances

The most significant improvement in accuracy comes from post-machining finishing. The precision grinding techniques for worm gear tooth profile are paramount, especially for double-enveloping worm gears, where the geometry is complex. Grinding offers superior surface finish and tighter control over the involute profile compared to traditional hobbing or milling.

The impact of gear tolerance on gearbox vibration level is defined by industry standards (e.g., International Organization for Standardization 1328-1). Moving from an ISO Grade 8 (commercial) to an ISO Grade 5 (high-precision) can reduce the dynamic meshing error by factors of ten, translating directly into significantly lower vibration and noise levels.

Gear Manufacturing Methods vs. Tolerance and Surface Finish

IV. Advanced Metrology and Quality Assurance

You cannot control what you cannot accurately measure. High-precision gearboxes require state-of-the-art metrology to verify the complex geometry of the components.

Verification of Complex Geometry

The verification of the toroidal geometry in the worm gear stage is a specialized process. The measuring instrument for toroidal worm gear accuracy must be capable of simultaneously measuring multiple geometrical parameters, including lead, profile, and pitch error. Shanghai SGR is equipped with the domestically innovated Toroidal Worm and Hob Measuring Instrument, a first in China, alongside high-accuracy 3D Measuring Machines. These instruments verify that every planetary worm gear component adheres to the tightest tolerances required for low backlash and noise.

V. Noise Reduction Strategies in the planetary worm gear

Beyond gear accuracy, the noise output is influenced by system dynamics and housing design. A successful B2B guide to noise reduction in planetary gearboxes must consider the entire system, not just the gears.

Systemic Noise Mitigation

• Lubrication: Utilizing synthetic oils with optimized viscosity for the operational speed and temperature ensures the formation of a quiet fluid film that dampens meshing impact noise.
• Housing Design: The housing rigidity must be high enough to prevent noise amplification through vibration. Our focus on compact and modular design inherently improves stiffness and reduces dynamic deflection, minimizing the contribution of the housing to the overall noise level.
• Gear Modification: Subtle modifications to the tooth profile (crowning or tip relief) can compensate for minor deflections under load, which directly mitigates the NVH effects related to the impact of gear tolerance on gearbox vibration level under real-world conditions.

VI. Conclusion

Controlling backlash and minimizing noise in a high-performance planetary worm gear requires a specialized, integrated approach, linking advanced design (such as the planar double-enveloping system) with rigorous manufacturing precision. Through the use of precision grinding techniques for worm gear tooth profile and validation via the measuring instrument for toroidal worm gear accuracy, Shanghai SGR Heavy Industry Machinery Co., Ltd. ensures that our gearboxes meet the strictest NVH requirements, offering high-tech solutions to our global B2B partners.

VII. Frequently Asked Questions (FAQ)

1. What is the definition of backlash in a planetary worm gear and why is its control critical?

Backlash is the clearance between the non-driving flanks of mating gear teeth. Its control is critical because excessive backlash reduces positioning accuracy and stiffness, leading to instability, impact noise, and premature wear, which is central to backlash control in planetary worm gear systems.

2. How does the impact of gear tolerance on gearbox vibration level manifest?

Poor gear tolerance leads to geometric errors (profile deviation, pitch error). These errors cause non-uniform meshing forces, creating dynamic excitation. This excitation is transferred through the bearings and housing, manifesting as audible vibration and noise, hence the need for high-grade ISO tolerance grades.

3. What distinguishes the precision grinding techniques for worm gear tooth profile from hobbing?

Precision grinding occurs after the gear material has been heat-treated and hardened. It offers a much finer surface finish and allows for correction of minor distortions caused by the heat treatment, resulting in superior geometric accuracy (Grade 3-5 versus Grade 8-10 for hobbing).

4. What specialized tool is required for the verification mentioned in measuring instrument for toroidal worm gear accuracy?

Verification requires a specialized machine, such as a Computer Numerical Control (CNC) Gear Measuring Instrument, often customized or designed in-house (like SGR's Toroidal Worm and Hob Measuring Instrument). Standard 3D measuring machines may struggle with the complex, non-involute, three-dimensional geometry of the double-enveloping worm profile.

5. What non-gear design elements contribute to the reduction addressed in the B2B guide to noise reduction in planetary gearboxes?

Non-gear elements include optimizing the housing design (increasing wall thickness and ribbing to dampen resonance), selecting high-quality, low-noise bearings, and using appropriate viscosity lubricants that create a thick, noise-absorbing fluid film between the meshing teeth.
