High-Torque Worm Gear Reducer for Heavy-Duty Industrial Applications

What Is a Double-Enveloping Worm Gearbox?

A double-enveloping worm gearbox is a specialized worm gear transmission in which both the designed worm and worm wheel are with enveloping tooth profiles. Compared with conventional cylindrical worm gear sets, the double-enveloping geometry creates a larger contact area and allows multiple teeth to share the transmitted load simultaneously.
This design helps improve load distribution, torque transmission capacity, wear resistance, and operating smoothness, making double-enveloping worm gearboxes suitable for demanding industrial applications requiring high torque and reliable continuous operation.

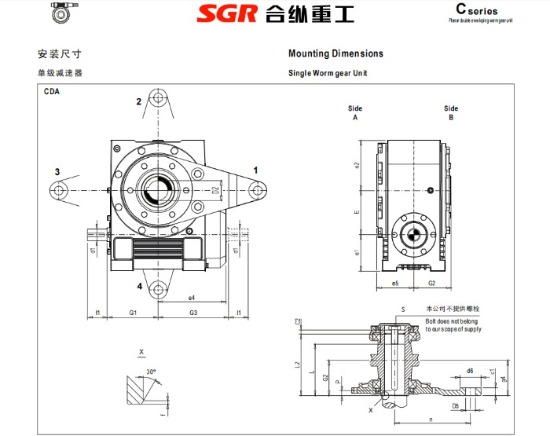

Technical Specifications

Comparison between traditional worm gearbox and SGR double-circuit worm gearbox

SGR Double-Enveloping Worm Gear Reducer Application Example

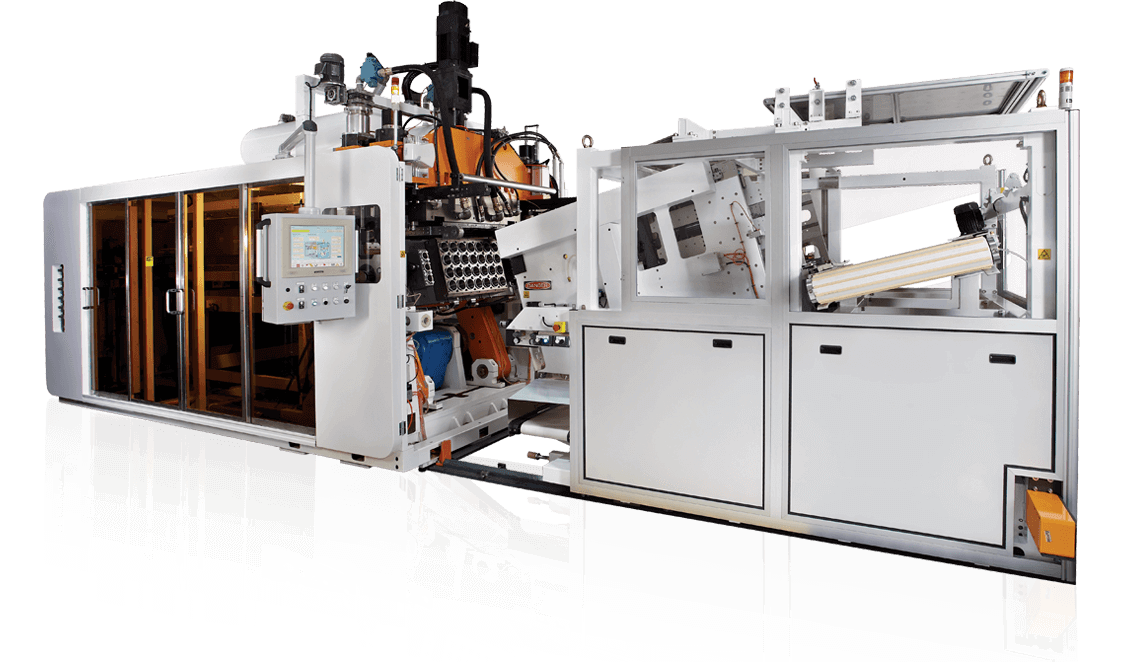

The SGR double-enveloping worm gear reducer has been successfully applied in an automatic MT Series Cut in Mold Tilting Thermoforming Machine with a mold-tilting function.

In this system, the gearbox is used in the power transmission mechanism to provide stable and reliable operation during continuous production cycles.

Thanks to its high load-carrying capacity, smooth motion transmission, and long service life, the SGR worm gear reducer helps improve equipment reliability and reduce maintenance requirements.

Its compact design, low operating noise, and flexibility for customized configurations make SGR double-enveloping worm gear reducers a suitable solution for modern packaging and thermoforming equipment.

SGR Toroidal Worm Gear Technology

SGR has extensive in-house capabilities in the research, design, and manufacturing of toroidal worm gear reducers. Our engineering team manages the key stages of development internally, from engineering calculations and 3D modeling to tooth-profile optimization and performance verification.

SGR uses proprietary calculation software for the design and analysis of toroidal worm gear transmissions. Based on gear meshing theory, our engineers simulate tooth-surface contact, analyze load distribution, and optimize the gear geometry to improve transmission efficiency, service life, and operating smoothness.

Manufacturing & Quality Control

Advanced Manufacturing Technology
SGR worm gear reducers are manufactured using modern CNC equipment.
Unlike conventional manufacturing processes that require dedicated cutters and specialized tooling, the worm's helical surface can be machined directly on CNC machines in a single setup. This helps achieve high manufacturing accuracy and consistent production quality.
The final finishing of gear tooth surfaces is performed using multi-axis grinding technology, which significantly improves machining accuracy and ensures consistent dimensional and geometric parameters for each component.

Strict Quality Control
Every SGR gearbox undergoes strict quality inspection before delivery.
Specialized measuring instruments for toroidal worms and cutting tools, together with coordinate measuring machines (CMM), are used to verify critical geometric parameters and key components.
Before shipment, every gearbox undergoes no-load testing to verify compliance with design requirements and ensure stable operation in the customer's equipment.

SGR Engineering and Patented Technology
SGR's engineering innovations are supported by proprietary patents.
The company has obtained patents from the China National Intellectual Property Administration for toroidal worm gear reducer designs, as well as patents covering a proprietary four-axis CNC combined turning and grinding machine developed for toroidal worm machining.
These technologies demonstrate SGR's engineering capabilities and long-term expertise in industrial power transmission.

OEM & Replacement Worm Gearbox Solutions
SGR provides customized double-enveloping worm gearbox solutions for OEM applications, equipment upgrades, and replacement projects.
If you need to replace an existing worm gearbox, our engineers can evaluate the original gearbox based on drawings, dimensions, gear ratio, output torque, shaft configuration, mounting dimensions, and other critical parameters.
Send us your gearbox drawing or technical specifications for evaluation and a customized quotation.

Why Choose SGR?
15 Years of Gearbox Manufacturing Experience
More than 15 years of experience in industrial power transmission and gearbox manufacturing.
In-House Engineering
In-house engineering capabilities covering gearbox design, transmission calculation, 3D modeling, and tooth-profile optimization.
Advanced Manufacturing
CNC machining, multi-axis grinding, precision measurement, and dedicated testing equipment.
OEM/ODM Capability
Customized gear ratios, shafts, mounting dimensions, housing configurations, and other technical parameters.

FAQ

1. Does SGR offer customized worm gear reducers?
Yes.SGR can manufacture worm gear reducers according to customer-specific technical requirements.Customization options include:Gear ratio,Input shaft,Output shaft, Mounting dimensions, Flanges,Housing configuration
Materials and Surface coating.

2. What are the advantages of a double-enveloping worm gear reducer?
Compared with conventional worm gear reducers, a double-enveloping design provides a larger contact area between the worm and worm wheel.
This increased tooth engagement can improve load-carrying capacity, power transmission efficiency, operating smoothness, and service life.

3. Is the SGR worm gear reducer suitable for continuous 24/7 operation?
Yes, depending on the specific model and operating conditions.
SGR worm gear reducers are designed for prolonged continuous operation when properly installed, lubricated, and maintained.
They can be used in conveyors, lifting equipment, packaging lines, and other industrial applications requiring reliable continuous power transmission.

4. Do SGR worm gear reducers have a self-locking function?
Depending on the gear ratio and operating conditions, certain worm gear reducer configurations may provide a self-locking effect.
When selecting a gearbox, SGR engineers can help determine the appropriate configuration based on the requirements of your equipment and application.

5. Which industries use SGR worm gear reducers?
SGR worm gear reducers are used in a variety of industrial applications, including:Lifting equipment,Conveyor systems,Packaging machinery, Thermoforming equipment, Food processing equipment, Metallurgical equipment,Mining machinery and Mixing equipment.

6. What is the manufacturing and delivery lead time?
For standard models, the lead time depends on current stock availability and production schedules.
For customized solutions, the manufacturing lead time is determined by the technical requirements and complexity of the project.
Please contact SGR for the latest production and delivery information.

7. How does SGR ensure product quality?
Every SGR gearbox undergoes a comprehensive quality control process, including:Geometric parameter inspection,Measurement of critical components, No-load testing and Final inspection before shipmen.

Production is carried out using modern CNC equipment and SGR's proprietary manufacturing technologies for toroidal worm gear transmissions.

8. Why choose SGR instead of a conventional gearbox supplier?
SGR is more than a gearbox manufacturer. We also have in-house engineering and product development capabilities.

We develop our own design and calculation software, apply proprietary manufacturing technologies for toroidal worm gear transmissions, use modern CNC production equipment, and maintain strict quality control throughout the manufacturing process.

This integrated engineering and manufacturing capability enables SGR to provide reliable, durable, and application-specific gearbox solutions for demanding industrial applications.

9.Is the gearbox suitable for continuous-duty applications?
Yes. SGR double-enveloping worm gearboxes are designed for demanding industrial power transmission applications and can be used for continuous-duty operation when properly selected and configured for the required working conditions.
The double-enveloping worm gear design provides a larger contact area and improved load distribution, helping the gearbox achieve high load-carrying capacity, smooth operation, and long service life. SGR also performs strict quality testing before shipment to ensure reliable gearbox performance.

For continuous-duty applications, gearbox selection should take into account the required output torque, gear ratio, motor power, operating speed, load characteristics, duty cycle, and operating environment.
If you provide your operating conditions and technical requirements, SGR engineers can recommend a suitable gearbox configuration.

10.How can I select the right double-enveloping worm gearbox?
The right double-enveloping worm gearbox should be selected according to the required torque, gear ratio, motor power, speed, mounting configuration, and operating conditions.
For an accurate selection, please provide the following information:

• Motor power (kW)
• Input speed (rpm)
• Required gear ratio (i)
• Output speed (rpm)
• Required output torque (N m)
• Duty cycle and load characteristics
• Mounting configuration
• Input and output shaft dimensions
• Operating environment
• Required quantity

SGR currently offers double-enveloping worm gearboxes with gear ratios from 10 to 63, output torque from 683 to 51,180 N m, and rated power from 1.41 to 448 kW for the product range shown on this page. Customized designs are also available for different application requirements.
If you are replacing an existing gearbox, you can also send us the gearbox drawing, nameplate, or technical specification. Our engineers can evaluate the requirements and recommend a suitable SGR replacement.
