Why do worm gear reducers become a top choice in mechanical transmission?

From marine auxiliary machinery to heavy construction equipment, from lifting devices to processing machinery, and from automated production equipment to household appliances, worm gear reducers can be found playing a significant role in reducing speed and increasing torque in almost every application.

In various lifting and hoisting equipment, worm gear reducers, thanks to their unique self-locking properties, play a crucial role in preventing reverse load drive, maintaining positional stability, preventing accidental lowering or slippage, and locking the position when there is no power input. They have made significant contributions to the development of various lifting equipment.

 Principles and characteristics of worm gear reducers

Worm gear reducers are a type of mechanical transmission device characterized by their compact structure, large transmission ratio, and self-locking function under certain conditions. They are also the most common transmission equipment in China's current mechanical transmission systems. The speed reduction and torque increase function of worm gear reducers is primarily achieved through the meshing of the worm wheel and the worm.

In a worm gear reducer, power is input through the worm, and the helical teeth of the worm drive the teeth of the worm wheel. However, because the helix angle of the worm is usually designed to be very small, the worm needs to rotate many turns for every single tooth rotation of the worm wheel. This asymmetry in the transmission ratio directly achieves a stepwise reduction in speed and a larger output torque. Furthermore, due to the small lead angle of the worm, the worm wheel cannot drive the worm in reverse, thus providing a self-locking function.

The reduction effect of a worm gear reducer is also affected by the friction characteristics of the materials used.  Using high-quality worm and worm wheel materials not only reduces wear but also significantly increases the contact area, resulting in more uniform and stable torque transmission.

This is particularly critical in heavy-duty applications where thermal stability and long service life are required. For instance, SGR’s C-series double-enveloping worm gear reducers utilize a carburized and precision-ground 20CrMnTi steel worm paired with a high-performance tin bronze worm wheel. This material combination minimizes friction loss, enhances load-carrying capacity, and improves transmission efficiency—reaching up to 85% in optimized designs. Moreover, the multi-tooth simultaneous meshing in double-enveloping geometry further distributes contact stress, reducing localized wear and ensuring quieter, smoother operation even under extreme loads.

 Advantages and performance characteristics of SGR worm gear reducers

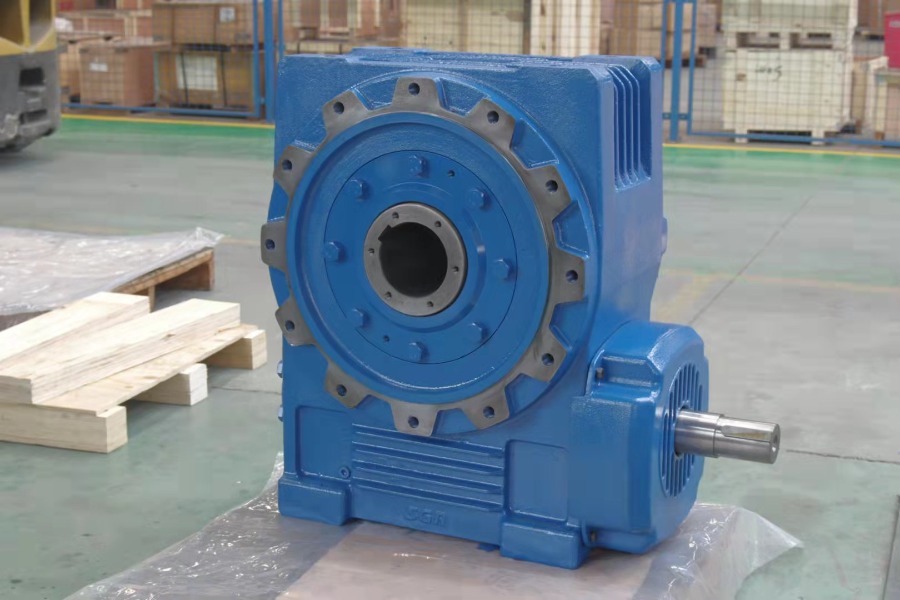

Worm gear reducers are a key focus of research and development at SGR.  The C-series worm gear reducers developed and manufactured by SGR feature multi-tooth meshing between the worm and worm wheel. The worm is made of 20CrMnTi steel, carburized, quenched, and then precision ground, while the worm wheel is made of high-performance alloy bronze, ensuring long-lasting wear resistance.  These reducers offer high transmission efficiency, a large transmission ratio, long service life, smooth operation, and low noise. They also have a reverse self-locking function, effectively improving the safety performance of the machinery.

SGR's C-series worm gear reducers have a center distance of 100-710mm, a speed ratio of i ≥10, and an output torque range of T2 ≤ 160000 N.m.  Through more than 15 years of research and development and production, SGR has achieved modular design, standardized specifications, and specialized production.

In the research of worm gear transmission technology, SGR has collaborated with relevant universities on systematic research covering design, manufacturing processes, production, assembly, and testing methods, aiming to promote the development of worm gear transmission technology.

 How to choose a worm gear reducer?

Based on over 15 years of experience in the research, development, and manufacturing of worm gear reducers,  SGR believes that the following factors should be given priority when selecting a worm gear reducer:

The mechanical performance of worm gear reducers

When selecting a worm gear reducer, focus on its transmission ratio, output torque and load capacity, input power and efficiency, mounting method and space limitations,  noise and vibration levels, ensuring that the chosen worm gear reducer meets the application requirements.

The worm gear reducer manufacturer's research, development, and production history.

The longer a worm gear reducer manufacturer has been researching and producing worm gear reducers, the more practical experience they accumulate, and the higher the quality of their products.

The manufacturer's reputation.

You can learn about the manufacturer's reputation, public image, and core values, and whether they are reliable, by reviewing the content published on their official website, social media accounts, and other platforms.

Related after-sales service.

When purchasing worm gear reducers, sign a contract with the worm gear reducer manufacturer and agree on the corresponding after-sales services to ensure that you can receive technical support and after-sales service in the future.

Currently, the SGR gearbox 3D selection system from SGR is officially launched!

You can log in to the selection system, complete the product parameters, and obtain a 3D model diagram in 3 seconds, easily completing the selection of your gearbox product!

SGR selection system also provides free downloads in various formats, improving communication efficiency and helping you quickly select the right gearbox product.(Author,SGR, Angie Zhang)
