The Mysteries of the Planet Gearbox: Principles and Design

A planet gearbox, also commonly known as a planetary reducer, is a transmission device that achieves highly efficient power transfer through a clever combination of gears. Its core appeal lies in its unique internal structure and the exceptional performance it delivers.

Planet Gearbox Principles: A Tiny Universe with Immense Power

To understand how a planet gearbox works, you can imagine a miniature solar system. This "solar system" is composed of three main parts:

• Sun Gear: Located at the center of the gearbox, it's the source of the driving or input force.
• Planet Gears: Multiple smaller gears that rotate around the sun gear. They are typically spaced equally and connected by a planet carrier. These planet gears are key to both transmission and reduction.
• Ring Gear: An annular gear with internal teeth that encloses the entire gear set. It is usually fixed in place, providing the orbital path for the planet gears.

When power is input to the sun gear, it drives the surrounding planet gears to rotate on their own axes. Simultaneously, constrained by the ring gear, these planet gears orbit along its inner wall, much like planets orbiting the sun. This compound motion, where the planet gears both rotate and orbit, significantly reduces the output shaft's speed (connected to the planet carrier) while greatly increasing its torque.

Flange Input Right Angle Big Output Torque Planetary Gearbox with Motor

Planet Gearbox Design: Considerations for Precision Engineering

Designing an excellent planet gearbox requires a comprehensive consideration of several key parameters to ensure its performance, reliability, and service life. Here are a few crucial design considerations:

1. Transmission Efficiency

A planet gearbox typically has very high transmission efficiency, though different designs and manufacturing processes can affect its performance. An efficient design minimizes energy loss and heat generation, thereby extending the gearbox's service life. Generally, the efficiency of a single-stage planet gearbox can be as high as 97%, with multi-stage designs being slightly lower.

2. Load Capacity

The load capacity of a planet gearbox far exceeds that of traditional parallel-shaft gearboxes. This is because the planet gears distribute the load evenly, with multiple gears participating in the power transfer simultaneously. This significantly disperses the pressure on any single gear, allowing it to handle high torque loads despite its compact size.

3. Backlash

Backlash is the clearance between meshing gears and is a crucial indicator of a planet gearbox's precision. The smaller the backlash, the higher the transmission accuracy and the faster the response time. Precision planet gearboxes optimize gear manufacturing precision and assembly processes to control backlash to extremely low levels (e.g., less than 3 arc minutes) to meet the demands of precise motion control.

4. Noise and Thermal Management

A well-designed planet gearbox will optimize the gear tooth profile and surface treatment to reduce noise during operation. Furthermore, effective thermal management, such as optimizing lubricating oil circulation and case heat dissipation, ensures the gearbox maintains stable performance during long-term, high-load operation.

Conclusion

The planet gearbox plays an indispensable role in modern industry. Its compact design and superior performance make it the preferred choice for high-torque, high-reduction ratio applications. From our discussion, it's clear that the planet gearbox is more than just a simple mechanical component; it's the culmination of precision engineering and efficient power transmission technology.

Its core advantages include:

• High Efficiency: The unique planetary structure ensures minimal energy loss, with single-stage efficiency often reaching 97%, which is crucial for applications requiring precise control and energy savings.
• High Torque Density: With multiple planet gears sharing the load, a planet gearbox can transmit more torque for its size, leading to more compact and lightweight equipment designs.
• High Precision and Low Backlash: For robotics, CNC machine tools, and other fields requiring precise motion control, the extremely low backlash provided by precision planet gearboxes ensures accurate movement and rapid response.

Looking ahead, with the deep integration of Industry 4.0 and smart manufacturing, the planet gearbox will evolve toward becoming lighter, more efficient, and smarter. The use of new materials, more advanced manufacturing processes, and integration with IoT technology will enable new performance breakthroughs, providing a solid power foundation for high-tech fields like automation, aerospace, and medical equipment.

In short, the planet gearbox, with its unique structure and unparalleled advantages, continues to drive the progress of industrial technology and is an essential "heart" component of the future automated world.

Frequently Asked Questions (FAQ)

1. What is a planet gearbox? How does it differ from a conventional gearbox?

A planet gearbox is a transmission device that uses planet gears rotating around a sun gear and a ring gear to achieve speed reduction and torque multiplication. Compared to traditional gearboxes, it offers higher transmission efficiency, a more compact size, and greater torque density. This makes it particularly suitable for applications requiring high precision, efficiency, and a compact design. Shanghai SGR Heavy Industry Machinery Co., Ltd., as a high-tech enterprise, specializes in these types of high-performance, low-noise gear transmission solutions.

2. How do I choose the right planet gearbox for my application?

Selecting the right planet gearbox requires considering several key factors, including the required reduction ratio, output torque, backlash precision, and the operating environment (e.g., temperature, load type). Our R&D team, composed of PhDs and senior engineers, has over 10 years of experience in the field of gear transmission and can provide you with professional selection advice and customized solutions.

3. What are the unique advantages of Shanghai SGR Heavy Industry Machinery Co., Ltd. in the planet gearbox field?

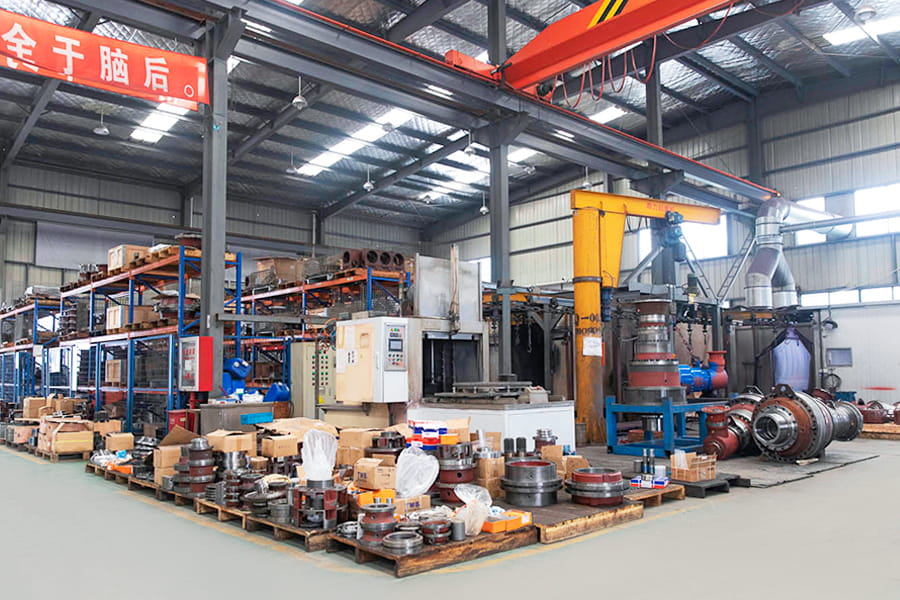

Shanghai SGR Heavy Industry Machinery Co., Ltd. is a high-tech enterprise focused on gear transmission. We have a strong R&D team and have successfully developed multiple innovative technologies, including the Planetary Gearbox, the Four-Axis Linkage Complex Profile Grinding Machine, and others. Equipped with advanced machinery such as CNC machines, the domestically innovated Toroidal Worm and Hob Measuring Instrument (a first in China), 3D Measuring Machines, and a Power and Efficiency Test System for Gearboxes, our company has formed a specialized system that integrates design, production, and technical services, ensuring our products are at the forefront of the industry in both performance and quality.
