SGR: a leading Chinese industrial gearbox supplier for demanding applications

In today’s high-stakes industrial landscape—where reliability, precision, and durability define operational success—the choice of an industrial gearbox supplier is more critical than ever.

For over 15 years, Shanghai SGR Heavy Industry Machinery Co., Ltd. has stood out as a trusted Chinese industrial gearbox supplier, delivering engineered solutions that meet the rigorous demands of trenchless drilling, bulk material handling, marine propulsion, and renewable energy systems worldwide.

Recognized as a Shanghai High-Tech Enterprise and listed in the city’s prestigious “Specialized, Refined, Unique, and Innovative” Enterprise Directory, SGR has transformed indigenous innovation into global competitiveness through deep technical mastery and vertical integration.

(1) SGR: A long-established Chinese industrial gearbox supplier with deep technical roots

Founded in 1996, SGR has built its reputation not on scale alone, but on precision engineering and system-level expertise in mechanical power transmission. The company’s R&D team—comprising doctoral researchers and senior engineers with decades of field experience—has pioneered several industry-first technologies in China, including:

A toroidal worm gear pair optimization design system;

A four-axis linkage CNC grinding machine for complex conjugate surfaces;

China’s first measuring instrument for toroidal worm gears and hobbing cutters.

Complemented by a Zeiss-grade coordinate measuring machine (CMM) and a full-load reducer power performance testing platform, SGR has established a closed-loop development ecosystem spanning design, manufacturing, validation, and technical service. This capability ensures every gearbox meets ISO, AGMA, and customer-specific standards before shipment.

Guided by a vision of “compactness, modularity, standardization, low vibration, and low noise,” SGR’s product philosophy aligns precisely with modern industrial trends toward automation, energy efficiency, and predictive maintenance.

(2) Core product lines: Precision-built for extreme conditions

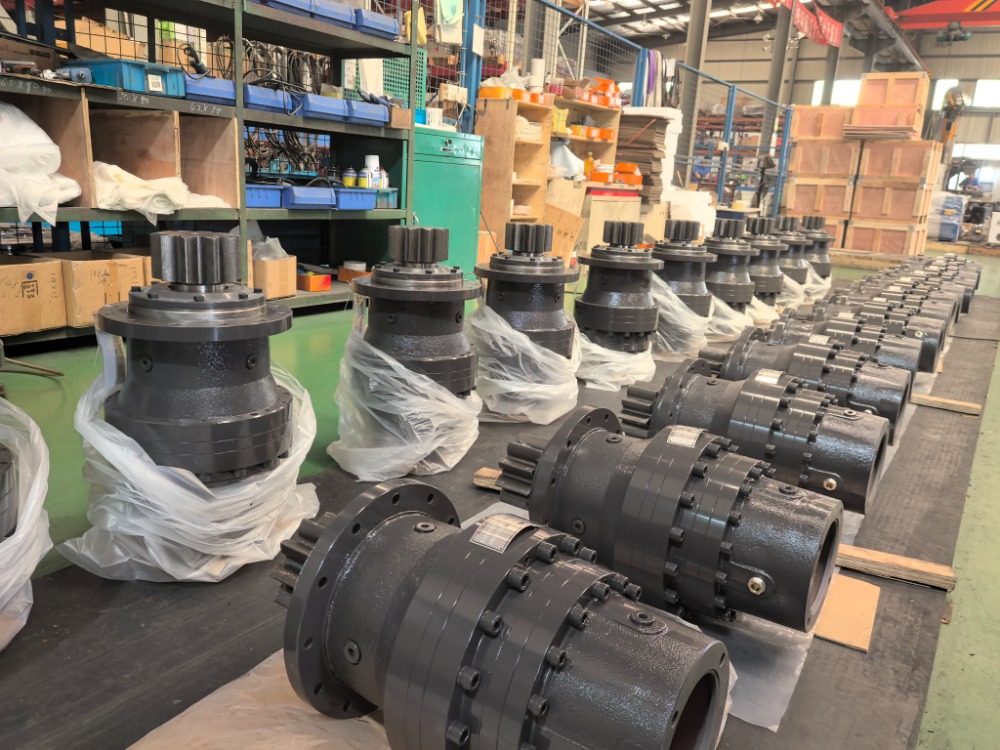

Industrial planetary gearboxes – power density meets reliability

SGR’s planetary gearboxes are engineered for applications demanding high torque in confined spaces. Key features include:

• Gears made from 20CrMnTi alloy steel, carburized, quenched to 58–62 HRC surface hardness, and precision ground to AGMA Class 6;
• Multi-tooth load distributionacross 3–6 planet gears, ensuring even stress sharing and exceptional fatigue resistance;
• Mechanical efficiency ≥96% per stage, minimizing heat generation during continuous operation;
• Modular mounting interfacesfor rapid integration.

These attributes make SGR planetary gear reducers ideal replacements for premium European brands in servo-driven or heavy-duty constant-speed systems.

Industrial double-enveloping worm gearboxes – safety, efficiency, and innovation

SGR’s C-series double-enveloping worm gearboxes represent a breakthrough in Chinese transmission technology. Unlike conventional cylindrical worm sets, this design features simultaneous multi-tooth meshing between a contoured worm and a matching bronze worm wheel, resulting in:

• 30–50% higher load capacityat identical frame sizes;
• Transmission efficiency up to 85%—unprecedented for worm technology;
• Inherent mechanical self-lockingat ratios ≥30:1, eliminating the need for external brakes in lifting or positioning systems;
• Worm: 20CrMnTi, carburized and precision-ground;
• Worm wheel: High-tin alloy bronze for superior anti-wear and anti-galling performance.

This combination delivers unmatched safety and longevity in vertical or intermittent-duty applications.

(3) Proven in the field: global application success stories

SGR’s gearboxes are not theoretical designs—they are battle-tested across some of the world’s most demanding industrial environments:

• Trenchless Horizontal Directional Drilling (HDD): In major pipeline projects across Central Asia, SGR planetary gearboxes drive rotary heads under extreme axial and radial loads. Their high torsional rigidity prevents drill string deflection, ensuring precise bore path control.

• Belt Conveyors in Mining & Cement: At a large limestone quarry in Indonesia, SGR N-series planetary gear reducers power high overland conveyors . With highprotection and option backstop, they withstand dust, moisture, and frequent start-stop cycle
• Tourist Boats & River Dredgers: On the Mekong Delta, SGR double-enveloping worm gearboxes transmit power to propeller shafts on eco-tourism vessels. Their self-locking feature prevents propeller windmilling when engines are off, enhancing docking safety. In dredging operations along China’s Yangtze River, the same units handle variable slurry loads with minimal maintenance.

• Hydroelectric Generators: In small hydropower stations in Yunnan Province, SGR planetary gearboxes serve as speed increasers between low-RPM turbines and high-RPM generators. Their low vibration profile protects sensitive generator bearings, while high efficiency maximizes energy capture from limited water flow.

These deployments underscore SGR’s ability to deliver mission-critical performance where failure is not an option.

As industries push toward smarter, cleaner, and more resilient operations, the role of the industrial gearbox supplier evolves from component vendor to strategic enabler. With 15+ years of focused R&D, vertically integrated manufacturing, and global field validation, SGR offers more than products—it provides engineering assurance.

For OEMs and system integrators seeking to reduce reliance on imported gearboxes without compromising performance, SGR stands ready with high-tech, high-reliability, and high-value solutions—engineered in China, proven worldwide.Choose SGR: where every rotation reflects precision, every decibel speaks of quality, and every application becomes a testament to Chinese innovation in motion.

(Author,SGR, Angie Zhang)
