Planetary Gearbox vs. Traditional Gearbox: Which Is More Reliable for Industrial Use?

Introduction to Gearbox Systems

What is a Planetary Gearbox?

A planetary gearbox is a type of gear system that features multiple gears arranged around a central sun gear, resembling the structure of a planetary system. This unique design allows for efficient power distribution and increased torque density. Planetary gear systems are ideal for applications that require high performance and compact design, such as in automotive, aerospace, and industrial machinery.

What is a Traditional Gearbox?

A traditional gearbox, on the other hand, uses a simple arrangement of gears, typically a shaft with multiple gears that mesh together. While traditional gearboxes are reliable and cost-effective, they may not provide the same level of torque efficiency and space-saving benefits as planetary gearboxes. Traditional gearboxes are commonly used in simpler machinery and applications with moderate performance demands.

Key Differences Between Planetary and Traditional Gearboxes

Torque Efficiency

Planetary gearboxes excel at distributing torque evenly across multiple gears, which leads to better efficiency and reduced wear. This makes them a superior choice for high-torque applications.

• Planetary gearboxes: Better torque distribution, improved load-sharing capability.
• Traditional gearboxes: Torque tends to be concentrated on fewer gears, leading to increased wear in high-load situations.

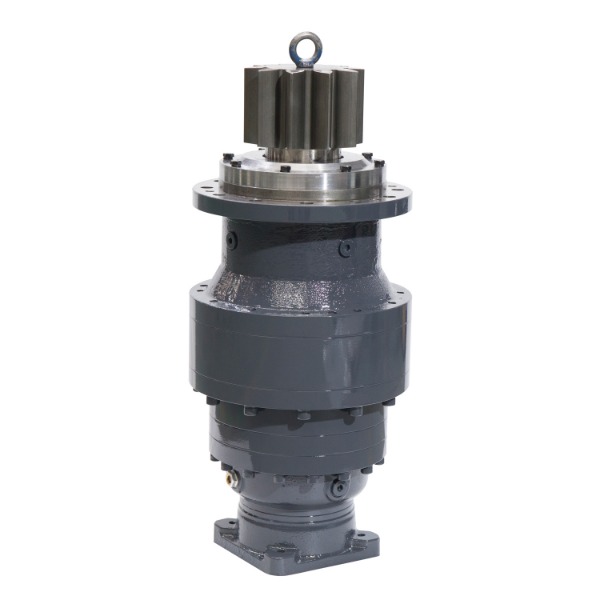

Planetary Gearbox for Gear Motors

Size and Space Considerations

The compact design of planetary gearboxes allows for space optimization, making them suitable for applications where size is a critical factor. On the other hand, traditional gearboxes often require more space due to their linear configuration.

• Planetary gearboxes: Smaller, more compact, ideal for space-constrained environments.
• Traditional gearboxes: Larger, more cumbersome, less suited for compact designs.

Maintenance and Durability

Planetary gearboxes are known for their durability and longer lifespan due to the even distribution of load. However, they can be more complex to maintain. Traditional gearboxes, while simpler, may require more frequent maintenance due to their higher wear and tear.

• Planetary gearboxes: Longer lifespan, but more complex to service.
• Traditional gearboxes: Easier to maintain but may suffer from higher rates of wear in demanding environments.

Why Choose a Planetary Gearbox for Industrial Use?

Enhanced Load Distribution

The load distribution in planetary gearboxes is more efficient than in traditional gear systems, as it is spread across multiple gears. This makes them ideal for heavy-duty industrial applications where high torque is required.

• Better load sharing between the sun, planet, and ring gears.
• Increased efficiency and reduced heat generation.

Compact and Lightweight Design

The compact nature of planetary gearboxes allows them to fit into smaller spaces, which is particularly advantageous in industries such as robotics and aerospace, where space and weight are critical factors.

• Space-saving design without compromising performance.
• Ideal for applications with size constraints.

High Power Density

Planetary gearboxes can achieve higher power densities, which means they can deliver more power in a smaller package, making them an excellent choice for industries requiring high performance in a compact form.

• Increased power-to-weight ratio.
• Efficient in high-performance applications.

When is a Traditional Gearbox More Suitable?

Simplicity in Design

Traditional gearboxes are simpler in design and easier to manufacture, which can make them a more cost-effective solution for less demanding applications.

• Ideal for low-cost, low-performance applications.
• Simpler to design and produce.

Cost Efficiency

For many industries, cost is a significant factor. Traditional gearboxes are often less expensive than planetary gearboxes, making them a preferred choice for applications where budget is a concern.

• Less expensive to manufacture and maintain.
• Suitable for applications with lower performance requirements.

Suitable for Low-Torque Applications

If the application does not demand high torque, a traditional gearbox may suffice. These systems are reliable in scenarios with moderate loads.

• Ideal for applications where torque is not a critical factor.
• Less wear and tear in low-torque environments.

Applications of Both Gearbox Types in Industrial Use

Applications of Planetary Gearboxes

• Robotics and automation systems.
• Aerospace engineering.
• Automotive applications requiring compact design and high performance.

Applications of Traditional Gearboxes

• Basic machinery and equipment.
• Applications with lower torque and speed requirements.
• Cost-sensitive industries needing simple, reliable solutions.

Conclusion: Which Gearbox Is More Reliable for Your Industry?

Choosing between a planetary gearbox and a traditional gearbox depends on your specific industrial needs. If your application requires high torque, efficiency, and compactness, a planetary gearbox is likely the best choice. However, for simpler, cost-sensitive applications, traditional gearboxes can provide a reliable and budget-friendly solution.

FAQ

What are the main advantages of planetary gearboxes in industrial machinery?

Planetary gearboxes offer high torque, compact design, and efficient load distribution, making them ideal for demanding industrial applications that require durability and performance.

How do planetary gearboxes improve torque efficiency in automation?

Planetary gearboxes evenly distribute torque across multiple gears, resulting in higher efficiency and less wear, which is especially beneficial in automated systems with high performance demands.

Can traditional gearboxes compete with planetary gearboxes in terms of durability?

While traditional gearboxes can be durable in low-torque applications, planetary gearboxes tend to last longer due to their superior load-sharing design, making them more reliable in high-torque and demanding environments.
