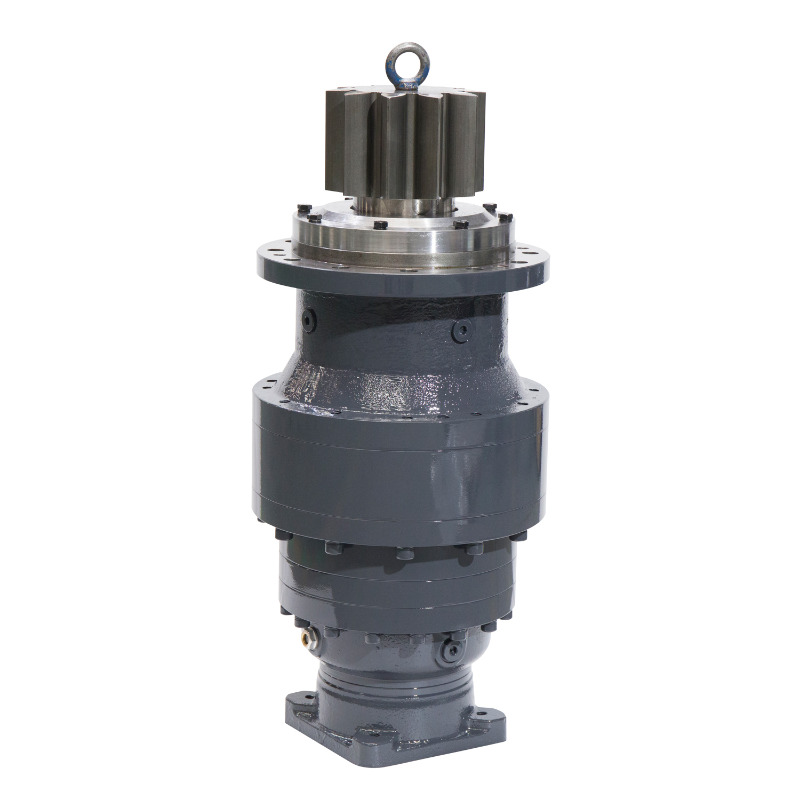

Torque Density and Peak Load Capacity of Planetary Gearbox for Hydraulic Motor

In heavy-duty applications such as construction equipment, mining vehicles, and specialized industrial machinery, the final drive system must deliver exceptional power while fitting into a restricted space. The **Planetary Gearbox for Hydraulic Motor** is the component that makes this possible, defined by its superior torque density. For engineers and procurement managers, selecting the right unit hinges on accurately assessing the **Hydraulic motor gearbox load rating** and its ability to handle demanding peak and **Cyclic load capacity** of final drive systems. Shanghai SGR Heavy Industry Machinery Co., Ltd., a recognized high-tech enterprise specializing in gear transmission, leverages its PhD and senior engineer R&D team and advanced, domestically innovated measuring equipment to produce robust, **High torque density planetary gearbox** solutions.

Achieving High Torque Density

The compact nature of the planetary design is its key functional advantage.

Design principles of High torque density planetary gearbox

A **High torque density planetary gearbox** achieves its compact power through a load-sharing configuration. In each reduction stage, the input torque is distributed from the sun gear to three or more planet gears, which simultaneously mesh with the outer ring gear. Because the load is shared across multiple tooth contacts, the system can transmit significantly greater torque through gears of a smaller diameter compared to traditional parallel axis gearboxes. This inherent load distribution is the defining feature enabling a **Planetary Gearbox for Hydraulic Motor** to offer high power density.

The trade-off: Planetary gearbox stages and efficiency

While increasing the number of **Planetary gearbox stages** (e.g., from two to three) effectively increases the total reduction ratio and the final output torque, this comes at a measurable cost to mechanical efficiency. Each meshing point introduces energy loss (primarily friction). A well-engineered gearbox balances the number of **Planetary gearbox stages** needed for the required output torque with the need to maintain high overall efficiency (low heat generation) under continuous operation.

Comparison: Gearbox Architecture vs. Torque Density and Axial Length:

Critical Load Capacity Metrics

Understanding the difference between rated and peak capacity is essential for preventing premature failure.

Defining Hydraulic motor gearbox load rating

The **Hydraulic motor gearbox load rating** must be broken down into two critical figures. The **Continuous Duty Torque** (T_{2 n}) is the maximum torque the unit can sustain constantly for its entire predicted service life without overheating or rapid wear. The **Maximum Intermittent Torque** (T_{\max) is the maximum allowable torque (e.g., during startup, braking, or shock loads) for short periods. A robust **Planetary Gearbox for Hydraulic Motor** will typically have a T_{\max that is 1.8 to 3.0 times its T_{2 n}, providing the necessary safety margin for real-world heavy machinery operation.

Quantifying the Cyclic load capacity of final drive

The **Cyclic load capacity** of final drive gearsets is determined by the material's resistance to fatigue, which is directly linked to the core strength and the depth/hardness of the case hardening (carburization). In final drive systems, where loads are constantly fluctuating (e.g., traversing uneven ground), the **Cyclic load capacity** of final drive components dictates the B10 life (the time at which 10\% of components are expected to fail). High-quality gearboxes rely on precision grinding and superior material cleanliness to maximize this life cycle.

Bearing Life and System Durability

The output bearing is often the limiting factor for overall gearbox service life.

Crucial Gearbox output bearing capacity analysis

The **Gearbox output bearing capacity** is a critical performance metric, particularly since the output shaft supports the high radial (F_{r}) and axial (F_{a}) loads imposed by the external drive components (sprockets, wheel hubs, etc.). Most **Planetary Gearbox for Hydraulic Motor** units utilize heavy-duty tapered roller bearings specifically sized to handle these combined forces. A comprehensive **Gearbox output bearing capacity** analysis must consider the application's duty cycle to calculate the required L}_{10 bearing life.

Factors limiting Gearbox output bearing capacity

Bearing failure is one of the most common modes of final drive breakdown. The **Gearbox output bearing capacity** is limited not just by static load but by the dynamic loads applied over time. Furthermore, the bearing life is extremely sensitive to cleanliness and temperature, making proper sealing (high IP rating) and effective heat dissipation (low power loss from balancing **Planetary gearbox stages**) paramount for maximizing service intervals and overall component reliability.

Conclusion

The selection of a **Planetary Gearbox for Hydraulic Motor** is a decision based on verified technical performance, not merely advertised ratio. Success in heavy machinery requires selecting a solution with a robust **Hydraulic motor gearbox load rating**, verified **Cyclic load capacity** of final drive components, and superior **Gearbox output bearing capacity**. Shanghai SGR Heavy Industry Machinery Co., Ltd. is committed to delivering **High torque density planetary gearbox** solutions, utilizing advanced manufacturing and proprietary R&D to ensure our products exceed industry standards for compactness, reliability, and precision, making us a high-tech partner for your most demanding applications.

Frequently Asked Questions (FAQ)

• What is the typical mechanical efficiency range for a multi-stage **Planetary Gearbox for Hydraulic Motor**? The mechanical efficiency of a well-designed planetary gearbox typically falls between 92\% to 98\%. This efficiency is inversely related to the number of **Planetary gearbox stages**; fewer stages generally result in higher efficiency.
• How does the **Gearbox output bearing capacity** relate to the overhung load? The output bearing capacity must be high enough to safely support the overhung load (radial load) exerted by the connected component (wheel, sprocket). Undersized bearings will drastically reduce the predicted L}_{10 service life of the **Planetary Gearbox for Hydraulic Motor**.
• What design element is key to achieving a **High torque density planetary gearbox** compared to a helical unit? The key design element is the load sharing among the planet gears in the planetary architecture, which allows a greater amount of torque to be transmitted through a smaller, coaxial arrangement, maximizing torque density per volume.
• Is the **Hydraulic motor gearbox load rating** guaranteed for intermittent loads in applications with high **Cyclic load capacity** of final drive systems? The intermittent (peak) load rating is the maximum guaranteed torque, but it is limited by a short duty cycle (e.g., 1,000 cycles total). For applications with continuously high and fluctuating loads, engineers must select a gearbox where the average working torque falls well within the continuous duty rating (T_{2 n}).
• What critical measurement equipment is required to verify the precision of the gears in a **Planetary Gearbox for Hydraulic Motor**? High-precision manufacturing requires advanced equipment such as CNC machines, 3D Measuring Machines (CMM), and specialized instruments like a Toroidal Worm and Hob Measuring Instrument to ensure the tight tolerances necessary for low noise, high efficiency, and the longevity of the **High torque density planetary gearbox**.
