Four key advantages of the double enveloping worm gear reducer

In the world of industrial power transmission, speed reducers are indispensable for converting high-speed, low-torque input into low-speed, high-torque output.

Among the many types available, the double enveloping worm gear reducer has emerged as a “dark horse”—a high-performance solution that combines efficiency, compactness, and robustness in ways conventional cylindrical worm or spur gear systems cannot match.

As a leading Chinese industrial gearbox manufacturer with over two decades of experience, SGR has specialized in this advanced technology, establishing itself as a national leader in strategic reducer segments. SGR’s double enveloping worm gear reducers are now trusted across demanding sectors—from heavy metallurgy to food processing—thanks to four distinct advantages that set them apart.

Wide transmission ratio range with exceptional efficiency

Unlike standard worm gear reducers, which typically suffer from low efficiency (often below 70%), the double enveloping worm gear reducer achieves transmission efficiencies of 85%–95%, depending on design and ratio. This dramatic improvement stems from its unique geometry: both the worm and worm wheel are contoured to envelop each other, enabling simultaneous engagement of multiple teeth. This increases the contact area, distributes load more evenly, and minimizes sliding friction—the primary source of energy loss in traditional worm pairs.Moreover, SGR’s models offer a broad reduction ratio range of 5:1 to 70:1 within a single stage, eliminating the need for complex multi-stage gear trains in many applications. This makes the reducer ideal for systems requiring precise speed control or significant torque amplification—such as lifting mechanisms, extruders, or indexing tables—without sacrificing energy efficiency or adding bulk.

 Compact design, smooth operation, and low noise

Space constraints are a constant challenge in modern machinery. SGR’s double enveloping worm reducers address this with an inherently compact architecture that delivers high torque density. Despite their robust performance, these units occupy minimal footprint and add little weight—critical for mobile equipment, robotic arms, or retrofit projects where space is at a premium.Equally important is operational smoothness. The worm shafts are manufactured from 20CrMnTi alloy steel, undergo carburizing, quenching, and precision grinding, achieving a tooth surface hardness of 58–62 HRC with mirror-like finish. Paired with a high-tin bronze worm wheel , the meshing action is exceptionally quiet and vibration-free. In real-world operation, noise levels typically remain low—well within acceptable limits for indoor or human-adjacent environments like food plants or automated warehouses.

Superior load capacity and transmission accuracy

The hallmark of the double enveloping design is its multi-tooth conjugate contact. While a standard worm may engage only 1–2 teeth at a time, SGR’s optimized geometry ensures 4–6 teeth share the load simultaneously. This not only boosts static and dynamic load capacity by 30–50% compared to cylindrical counterparts but also enhances torsional rigidity and positioning repeatability.Combined with micron-level machining tolerances and strict quality control—including full inspection via coordinate measuring machines (CMM)—SGR ensures every reducer maintains high kinematic accuracy under varying loads. This reliability is why the technology is favored in applications where safety and precision are non-negotiable, such as crane hoists, dam gate operators, and CNC rotary tables.Notably, at high reduction ratios (≥30:1), the system exhibits mechanical self-locking: the worm wheel cannot back-drive the worm, providing inherent braking without external components—a critical safety feature in vertical lifting systems.

Easy installation, maintenance, and long service life

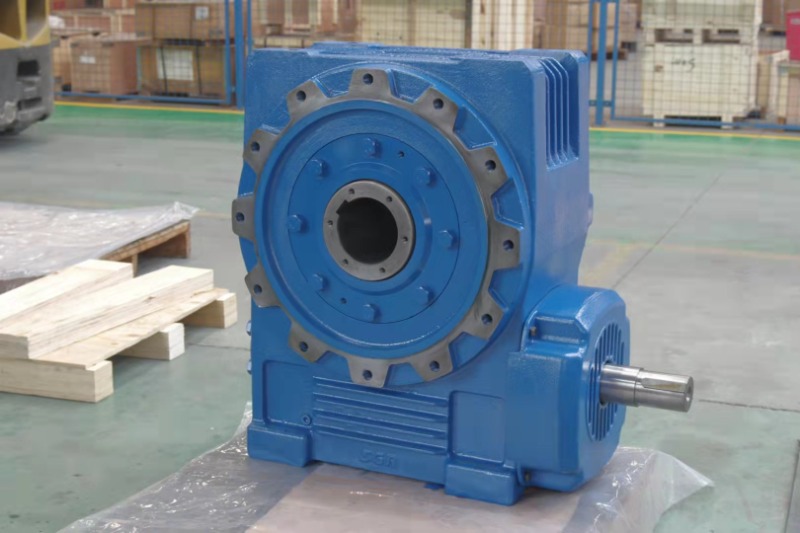

SGR designs its double enveloping worm reducers with user-centric engineering. Multiple mounting options—including foot-mounted , flange-mounted and hollow-shaft configurations—ensure seamless integration into existing drivetrains. Standardized interfaces align with IEC and ISO norms, enhancing interchangeability.The housing features a fully sealed structure with high-quality oil seals and vent valves, drastically reducing the risk of lubricant leakage—even in harsh, dusty, or humid environments. Maintenance is simplified thanks to accessible oil fill/drain ports and modular construction. Under proper lubrication with recommended synthetic oils, service intervals can exceed 20,000 operating hours.This combination of durability and ease of service translates into lower total cost of ownership—a key consideration for plant managers and OEMs alike.

Thanks to these four core advantages—high efficiency across a wide ratio range, compact and quiet operation, exceptional load capacity with precision, and user-friendly maintenance—SGR’s double enveloping worm gear reducers have become go-to solutions in industries including chemical processing, steel manufacturing, construction machinery, food & beverage, and renewable energy.Backed by over 20 years of R&D, proprietary CNC grinding capabilities, and China’s first dedicated toroidal worm metrology system, SGR doesn’t just supply gearboxes—it delivers engineered confidence. For engineers seeking a reliable, high-performance alternative to imported reducers, SGR’s double enveloping worm gear technology offers a compelling blend of innovation, quality, and value—proving that sometimes, the best solutions come from the most unexpected “dark horses.”(Author,SGR, Angie Zhang)
