Coaxial Planetary Gearbox: Structure, Advantages, Applications and Selection Guide

A coaxial planetary gearbox is a compact and high-performance transmission solution designed for applications that require high torque, efficient power transmission, and a space-saving structure. Compared with conventional gear reducers, a coaxial planetary gearbox combines a planetary gear transmission system with an in-line input and output arrangement, making it suitable for a wide range of industrial machinery.

From drilling equipment and mining machinery to cranes, agricultural machinery, and other heavy-duty applications, coaxial planetary gearboxes provide reliable torque transmission while maintaining a compact footprint.

But how does a coaxial planetary gearbox work, and how should you choose the right model for your equipment?

What Is a Coaxial Planetary Gearbox?

A coaxial planetary gearbox is a type of planetary gear reducer in which the input shaft and output shaft are arranged on the same axis.

The planetary transmission system typically consists of:sun gear，planet gears,planet carrier and internal ring gear.

During operation, the sun gear transfers power to multiple planet gears. The planet gears rotate around the sun gear while engaging with the internal ring gear. Because multiple gears share the transmitted load, a planetary gearbox can achieve high torque capacity within a relatively compact housing.

The coaxial configuration also makes it easier to integrate the gearbox with motors and other mechanical components where installation space is limited.

Key Advantages of a Coaxial Planetary Gearbox

1. High Torque Capacity

One of the most important advantages of planetary transmission is its load-sharing capability.

Multiple planet gears distribute the transmitted load, allowing the gearbox to handle high torque and heavy-duty operating conditions.

This makes coaxial planetary gearboxes suitable for equipment that requires high starting torque, frequent reversing, or continuous operation.

2. Compact and Space-Saving Design

The coaxial input and output arrangement allows the gearbox to maintain a relatively compact structure.

Compared with some conventional transmission systems, a coaxial planetary gearbox can provide high torque output without requiring excessive installation space.

This is particularly useful when the gearbox must be integrated into compact machinery.

3. High Transmission Efficiency

A well-designed planetary transmission can achieve high mechanical efficiency because the power is distributed among multiple gear meshes.

High efficiency can help reduce energy losses and improve the overall performance of the machine.

4. Stable Operation

The symmetrical planetary structure provides balanced load distribution around the central axis.

This helps reduce uneven loading and contributes to stable operation, particularly under high-load conditions.

5. Flexible Reduction Ratios

Planetary gearboxes can use single-stage, two-stage, or multi-stage configurations.

By combining different planetary stages, manufacturers can provide a wide range of reduction ratios to meet different output speed and torque requirements.

Where Are Coaxial Planetary Gearboxes Used?

The compact structure and high torque capacity of coaxial planetary gearboxes make them suitable for many industrial applications.

Drilling Equipment

Drilling machines require high torque, reliable operation, and resistance to shock loads.

Coaxial planetary gearboxes can be used in drilling equipment where high torque output and compact installation are important.

Typical applications include:electric drilling rigs,horizontal directional drilling equipment,engineering drilling machines and ground drilling equipment.

Mining Machinery

Mining equipment often operates under heavy loads, dust, vibration, and long working cycles.

A heavy-duty coaxial planetary gearbox can provide the torque and durability required for mining machinery such as conveyors, crushers, feeders, and other material-handling equipment.

Cranes and Lifting Equipment

Cranes and lifting machinery require reliable torque transmission and controlled output speed.

Coaxial planetary gearboxes can be integrated into lifting and driving systems where high torque and compact dimensions are required.

Agricultural and Livestock Machinery

Modern agricultural equipment often requires compact but powerful transmission systems.

Coaxial planetary gearboxes can be used in agricultural machinery that operates under variable loads and demanding outdoor conditions.

Metallurgical and Industrial Equipment

Heavy industrial equipment in metallurgy and manufacturing often operates continuously under high loads.

The high load capacity and stable transmission characteristics of planetary gearboxes make them suitable for demanding industrial environments.

How to Choose the Right Coaxial Planetary Gearbox?

Selecting a gearbox should not be based only on the reduction ratio.

Before choosing a coaxial planetary gearbox, consider the following parameters.

Output Torque

Determine the continuous and peak torque required by the machine.

The selected gearbox should have sufficient torque capacity to handle both normal operation and unexpected load peaks.

Reduction Ratio

The reduction ratio determines the relationship between input speed and output speed.

Choose the appropriate ratio according to the required output speed of the equipment.

Input Power and Speed

The gearbox must be matched to the motor's rated power and input speed.

An incorrect combination can result in excessive heat generation, overload, or premature component wear.

Working Conditions

Consider the actual operating environment, including:working hours per day,load type,shock loads,starting and stopping frequency,ambient temperature,dust and moisture and installation position.

These factors are essential for determining the appropriate gearbox configuration and service factor.

Mounting and Output Configuration

The mounting dimensions, input connection, output shaft, flange, and installation orientation must match the machine.

For OEM applications, customized mounting and output configurations may be required.

Why recommend you choose SGR Coaxial Planetary Gearboxes?

SGR is an industrial gearbox manufacturer specializing in planetary gear reducers and worm gear reducers.

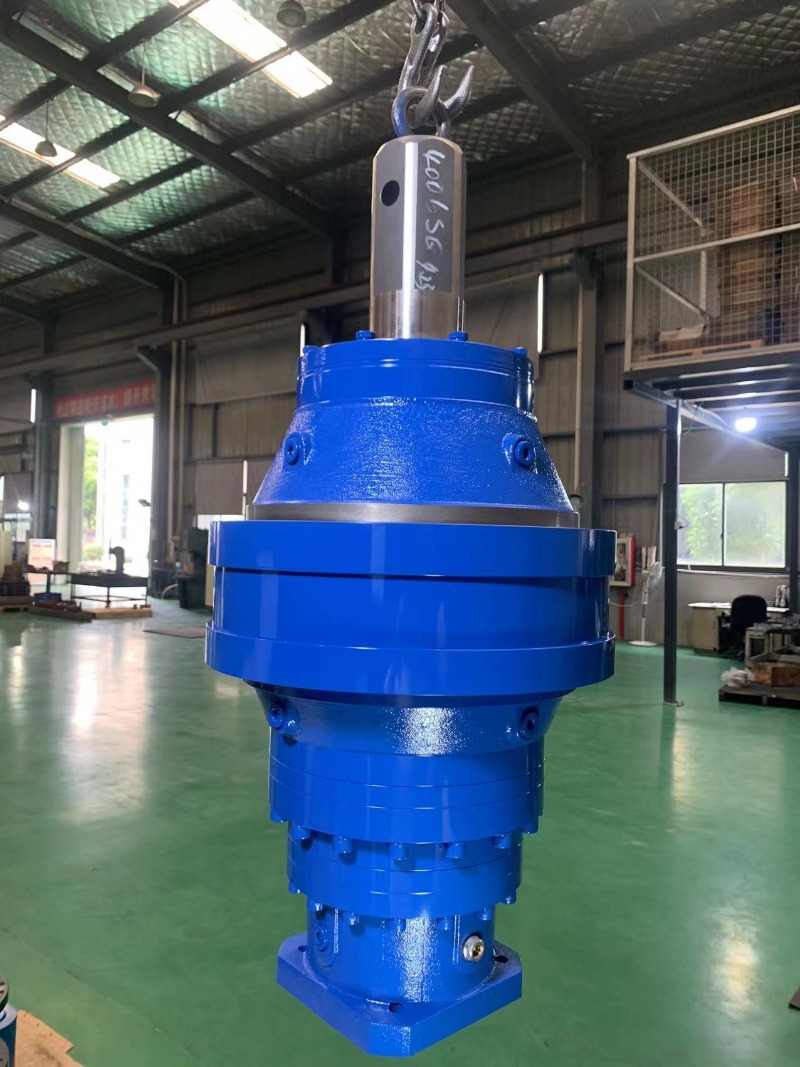

SGR coaxial planetary gearboxes are designed for applications requiring high torque, compact dimensions, reliable transmission, and flexible configurations.

The planetary gearboxes use high-strength gear materials and precision manufacturing processes to improve gear durability and transmission performance.

Depending on the application, SGR can provide different planetary stages, reduction ratios, input configurations, and output solutions.

SGR planetary gear reducers are widely used in:electric drilling rigs,crawler machinery,wind power equipment,agricultural and livestock machinery,mining machinery,metallurgical equipment and cranes and lifting machinery.

For OEM machinery manufacturers, SGR can also provide application-based technical support to help customers select the appropriate gearbox according to motor power, output torque, speed, installation dimensions, and working conditions.

A coaxial planetary gearbox combines the high torque capability of planetary transmission with a space-saving in-line configuration. Its compact design, high load capacity, efficient power transmission, and flexible reduction ratios make it an effective solution for demanding industrial machinery.

When selecting a coaxial planetary gearbox, manufacturers should consider more than the gearbox price or reduction ratio. Output torque, motor power, operating conditions, service factor, mounting dimensions, and expected service life should all be evaluated.

For machinery manufacturers looking for a reliable transmission partner, choosing an experienced planetary gearbox manufacturer can help ensure that the gearbox is properly matched to the complete machine.（Author, SGR, Angie Zhang）
