Heavy Duty Planetary Gearbox: Applications, Advantages and Selection Guide

When industrial machinery needs to transmit high torque under demanding operating conditions, a standard gearbox may not always be sufficient. Heavy loads, frequent starts and stops, shock loads, and long operating hours all place higher demands on the transmission system.

A heavy duty planetary gearbox is designed for these demanding applications. By using multiple planetary gears to distribute the transmitted load, a planetary transmission can provide high torque capacity, compact dimensions, efficient power transmission, and reliable operation.

For equipment manufacturers and industrial users, choosing the right heavy duty planetary gearbox requires more than simply comparing torque ratings. Gearbox configuration, reduction ratio, motor power, operating conditions, mounting method, and service factor should all be considered.

What Is a Heavy Duty Planetary Gearbox?

A heavy duty planetary gearbox is a planetary gear reducer designed for high-load and demanding industrial applications.

A typical planetary transmission consists of a sun gear, multiple planet gears, a planet carrier, and an internal ring gear. Instead of transmitting the entire load through a single gear pair, the planetary gears share the load around the central axis.

This load-sharing structure gives planetary gearboxes a high torque-to-size ratio and makes them particularly suitable for heavy machinery.

Compared with conventional gear reduction systems, a heavy duty planetary gearbox can provide high output torque while maintaining a relatively compact structure. Its coaxial configuration also makes it easier to integrate into many types of industrial equipment.

Why Choose a Heavy Duty Planetary Gearbox?

High Torque Capacity

High torque is one of the most important reasons to choose a planetary gearbox.

Multiple planetary gears distribute the transmitted load, allowing the gearbox to handle high torque more effectively.

This makes heavy duty planetary gearboxes suitable for equipment operating under high starting torque,heavy continuous loads,shock loads,frequent reversing and low-speed and high-torque conditions.

SGR's planetary gearbox range includes high-torque configurations designed for demanding industrial applications. Its product portfolio includes coaxial, right-angle, and slewing planetary gearbox configurations.

Compact Structure

Heavy-duty does not necessarily mean oversized.The planetary structure allows high torque to be transmitted through a relatively compact gearbox. This is valuable for machinery where installation space is limited but high output torque is required.

A compact transmission can also simplify machine integration and help reduce the overall size of the drivetrain.

Efficient Power Transmission

A properly designed planetary transmission can achieve high mechanical efficiency because the load is distributed among multiple gear meshes.For industrial equipment operating for long hours, transmission efficiency can have a direct impact on energy consumption and operating costs.

 Reliable Load Distribution

The symmetrical planetary arrangement helps distribute the load around the central axis.

This is particularly useful in heavy-duty applications where uneven loading and shock loads can place significant stress on gears, shafts, and bearings.

Flexible Configuration

Planetary gearboxes can be designed with different numbers of stages and input/output configurations.Depending on the required speed and torque, manufacturers can configure single-stage, two-stage, or multi-stage planetary transmissions.

SGR's product center currently includes coaxial planetary gear reducers, right-angle planetary gear reducers, high-torque planetary gearboxes, and slewing planetary gearbox solutions.

Where Are Heavy Duty Planetary Gearboxes Used?

Because of their high torque density and load capacity, heavy duty planetary gearboxes are widely used in demanding industrial machinery.

Drilling Machinery

Drilling equipment requires high torque and stable transmission under changing loads.

Heavy duty planetary gearboxes can be used in:electric drilling rigs,horizontal directional drilling equipment,engineering drilling machines and ground drilling equipment.

SGR lists drilling applications among its gearbox projects, including trenchless horizontal directional drilling.

Mining Machinery

Mining equipment often operates under heavy loads, vibration, dust, and long working cycles.

Heavy duty planetary gearboxes can provide the high torque required for mining and material-handling equipment.

Typical applications include conveyors, crushers, feeders, and other heavy-duty machinery.

Cranes and Lifting Equipment

Cranes require high starting torque, controlled output speed, and reliable transmission.

Planetary gearboxes are suitable for lifting and driving systems where high torque must be delivered within limited installation space.

SGR's application portfolio includes cranes and construction cranes.

Wind Power Equipment

Wind power equipment requires reliable transmission components capable of operating for long periods under changing loads.

Planetary transmission technology is well suited to applications where compact dimensions, high torque capacity, and stable operation are important.

Agricultural and Heavy-Duty Machinery

Agricultural and livestock machinery can also operate under variable loads and harsh outdoor conditions.

A heavy duty planetary gearbox can provide reliable torque transmission for equipment that requires compact dimensions and high load capacity.

How to Select a Heavy Duty Planetary Gearbox?

Choosing the right gearbox starts with the actual operating conditions of the machine.

Output Torque

Determine both the required continuous torque and peak torque.

The gearbox should have sufficient capacity to handle normal operating loads as well as temporary shock loads.

Reduction Ratio

The reduction ratio determines the relationship between input speed and output speed.

A suitable ratio should be selected according to the required output speed and torque of the machine.

Motor Power and Input Speed

The gearbox must be properly matched with the motor.

Provide the gearbox manufacturer with the motor power, input speed, required output speed, and operating cycle to determine an appropriate configuration.

Service Factor

Heavy-duty applications may involve impact loads, frequent starts and stops, or continuous operation.

Therefore, the gearbox should be selected with an appropriate service factor rather than based only on the nominal output torque.

Mounting Configuration

Installation space and mechanical connection are also important.

Depending on the machine, you may require:coaxial configuration,right-angle configuration,flange mounting,base mounting and customized input or output shafts.

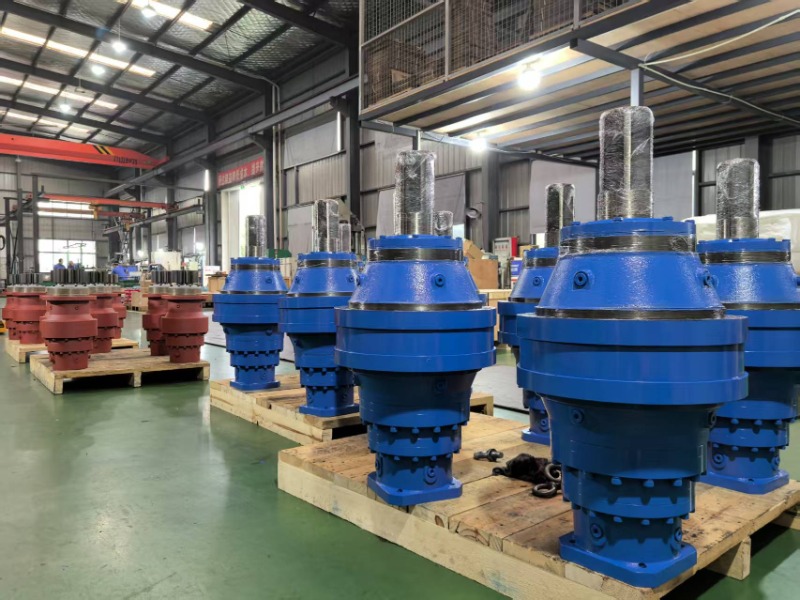

SGR Heavy Duty Planetary Gearbox Solutions

SGR is a professional industrial gearbox manufacturer with more than 15 years of experience in gear transmission. Its product portfolio includes planetary gearboxes, double-enveloping worm gearboxes, cylindrical worm gear reducers, combination reducers, and specialized transmission solutions.

For heavy-duty applications, SGR offers planetary gearbox configurations including high-torque coaxial planetary gearboxes, right-angle planetary gearboxes, and slewing planetary gearboxes. The company also provides customized gearbox solutions according to different equipment requirements.

SGR's manufacturing and engineering capabilities include CNC machining, 3D measurement, gearbox power and efficiency testing, and a research and development team composed of experienced engineers and technical specialists.

This combination of product development, manufacturing, testing, and application experience allows SGR to provide transmission solutions for demanding applications including drilling, mining, cranes, wind power, agriculture, and other heavy industrial equipment.

A heavy duty planetary gearbox is an effective transmission solution for machinery that requires high torque, compact dimensions, reliable load distribution, and stable long-term operation.

When selecting a heavy-duty planetary reducer, users should consider more than the maximum torque rating. Motor power, input speed, reduction ratio, service factor, load characteristics, installation configuration, and operating environment should all be evaluated.

For OEM equipment manufacturers and industrial users, working with an experienced planetary gearbox manufacturer can help ensure that the gearbox is properly matched to the complete machine.

With its range of high-torque planetary gearbox configurations and customized transmission solutions, SGR provides industrial gearboxes for demanding applications such as drilling machinery, mining equipment, cranes, wind power, agricultural machinery, and other heavy-duty equipment. (Author,SGR, Angie Zhang)
