What are the differences between single and multi-stage planetary gearboxes?

In the world of industrial power transmission, planetary gearboxes have become the backbone of high-performance machinery. As equipment demands evolve—requiring higher torque, greater efficiency, and more compact designs—OEMs and system integrators face a critical decision: Should they choose a single-stage or multi-stage planetary gearbox? Understanding the differences between these two configurations is essential for optimizing machine performance, reliability, and total cost of ownership.

At SGR, a leading planetary gearbox manufacturer based in Shanghai, we specialize in both single-stage and multi-stage planetary gearboxes, as well as double-enveloping worm gearboxes. With over 15 years of engineering expertise, a 15,000㎡ manufacturing facility, and a team of Ph.D. researchers and senior engineers, we design transmission solutions that meet the rigorous demands of non-excavation drilling, mining, power generation, textile machinery, and more.

Let’s explore the key distinctions between single and multi-stage planetary gearboxes—and why SGR’s multi-stage planetary gearboxes  stand out in the market.

(1) Single-stage planetary gearbox: simplicity, efficiency, and compactness

A single-stage planetary gearbox consists of one sun gear, multiple planet gears, a ring gear, and a carrier. Power is transmitted through a single reduction stage, making it the most straightforward and efficient configuration in the planetary family.

Key features of the singe-stage planetary gearbox:

Speed Ratio Range: Typically 3:1 to 10:1

Transmission Efficiency: ≥97% per stage—among the highest in mechanical drives

Compact Design: Minimal axial length and lightweight, ideal for space-constrained applications

Low Backlash: Precision-ground gears achieve ≤3 arcmin backlash, suitable for servo and motion control systems

High Power Density: Efficient power flow with minimal heat generation

 Applications of the single-stage planetary gearbox:

• Electric-driven horizontal directional drilling (HDD) rigs
• Small to medium generators
• Conveyor systems with moderate torque requirements
• Robotics and automated assembly lines

The single-stage planetary gearbox excels in scenarios where efficiency, response speed, and compactness are prioritized. It is the preferred choice for high-speed input sources (e.g., 1500–3000 rpm motors) that require moderate speed reduction and smooth operation.

However, when applications demand higher reduction ratios or greater output torque, a single stage reaches its physical limits. This is where the multi-stage planetary gearbox becomes the superior solution.

(2) Multi-stage planetary gearbox: power, torque, and versatility

A multi-stage planetary gearbox (commonly two or three stages) connects multiple planetary sets in series within a single housing. The output of the first stage becomes the input of the next, multiplying the reduction ratio and torque output.

Key Features:

• Speed Ratio Range:20:1 to 100:1 (e.g., 5:1 × 4:1 = 20:1)
• Output Torque:Significantly higher than single-stage—up to 5× greater for the same frame size
• Efficiency:Slightly lower due to additional gear meshes, but still high at 94%–96% for two stages
• Structural Rigidity:Enhanced load distribution across multiple stages improves durability under shock loads
• Customization Flexibility:Can combine different gear ratios and materials to meet specific load profiles

Applications of the multi-stage planetary gearbox:

• Heavy-duty non-excavation drilling rigs requiring 100,000+ Nm torque
• Mining conveyors and crushers operating under continuous load
• Wind turbine pitch and yaw drives
• Large industrial mixers and extruders

While multi-stage gearboxes are slightly longer and heavier, their ability to deliver high torque in a controlled, efficient manner makes them indispensable in demanding industrial environments. They eliminate the need for external speed reducers or inefficient worm gear combinations, streamlining system design and improving reliability.

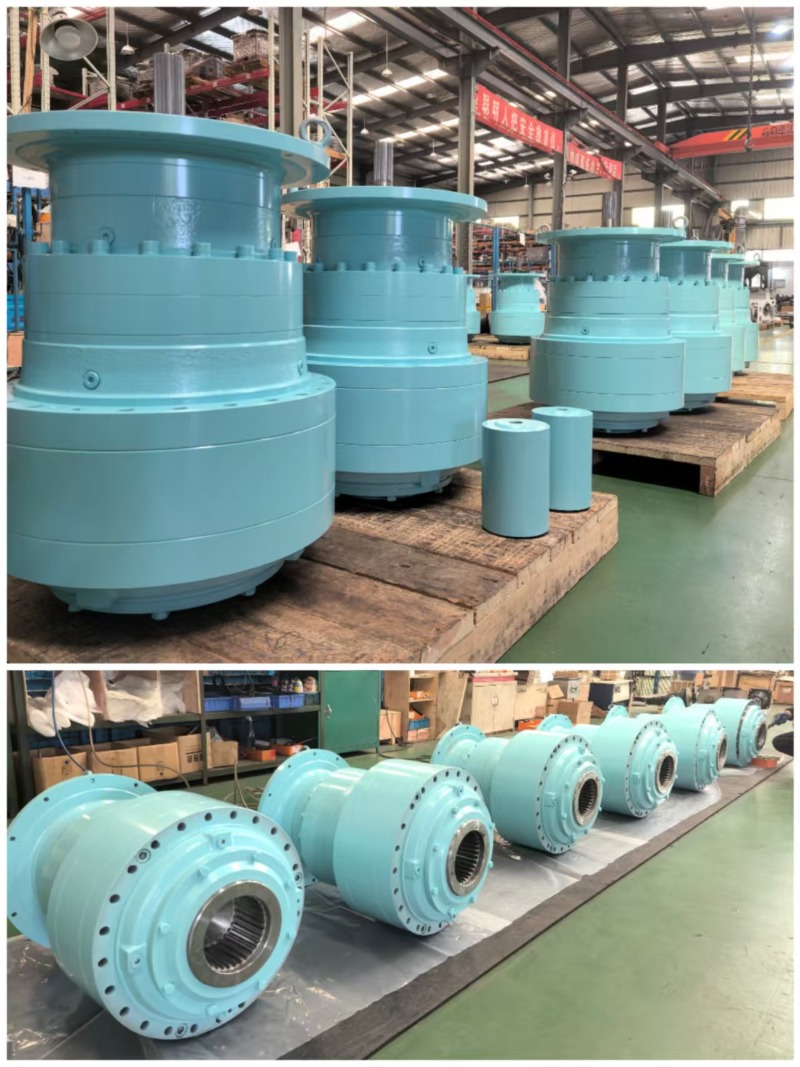

(3) SGR multi-stage planetary gearbox: engineered for extreme performance

At SGR, we don’t just manufacture multi-stage planetary gearboxes—we engineer them for real-world industrial challenges. Our multi-stage planetary gearboxes are designed to outperform standard offerings in torque capacity, efficiency, and service life.

Core advantages of SGR multi-stage planetary gearboxes:

• Proprietary gear optimization:Our in-house Toroidal Worm Pair Optimization System and advanced finite element analysis ensure optimal tooth contact, load distribution, and noise reduction—even under full load.
• High-precision manufacturing:Gears are precision-cut from 20CrMnTi alloy steel, carburized, quenched. This ensures long-term durability and minimal wear.
• Integrated testing & validation:Every SGR gearbox undergoes full-power performance testing on our in-house test benches, simulating real operating conditions for temperature, vibration, and efficiency.
• Custom solutions:We offer tailored speed ratios, mounting configurations, lubrication systems , and monitoring interfaces .

Main applications of SGR multi-stage planetary gearboxes:

• Non-Excavation Drilling:SGR multi-stage planetary gearboxes power electric and diesel-driven HDD rigs, delivering the high torque and low-speed control needed for rock penetration and pipe reaming.
• Mining & Quarrying:Used in heavy-duty conveyors and crushers, our gearboxes withstand continuous operation and frequent load shocks.
• Power Generation:Integrated into small-scale generators and auxiliary drives, ensuring stable, low-maintenance performance.

SGR is a Shanghai High-Tech Enterprise and listed in the city’s “Specialized, Sophisticated, Unique, and Innovative” (Zhuan Jing Te Xin) program. Our N-Series planetary gearbox won the China Gear Association’s “Science and Technology Achievement First Prize” (2009) and was recognized as a Shanghai High-Tech Transformation Project. We hold multiple invention and utility model patents, reflecting our commitment to innovation.

Conclusion: Choosing the Right Planetary Gearbox for Your Application

The choice between single-stage and multi-stage planetary gearboxes depends on your machine’s speed, torque, efficiency, and space requirements.

• Choose single-stagefor high efficiency, compactness, and moderate reduction needs.
• Choose multi-stagefor high torque, large speed reduction, and heavy-duty operation.

As a leading China planetary gearbox company, SGR offers both configurations with uncompromising quality. Our multi-stage planetary gearboxes, in particular, represent the pinnacle of power transmission engineering—delivering robust performance, extended service life, and superior return on investment.

For OEMs and industrial manufacturers seeking a reliable, innovative, and technically advanced gearbox partner, SGR is the smart choice. Contact us today to discuss your application and discover how our planetary gearboxes can elevate your equipment’s performance.(Author,SGR, Angie Zhang)
