See DetailsThe mechanical world has seen significant advancements in power transmission systems, with planetary reduction gearbox designs leading the charge. These compact yet powerful systems have become indispensable in applications requiring high torque and precision.

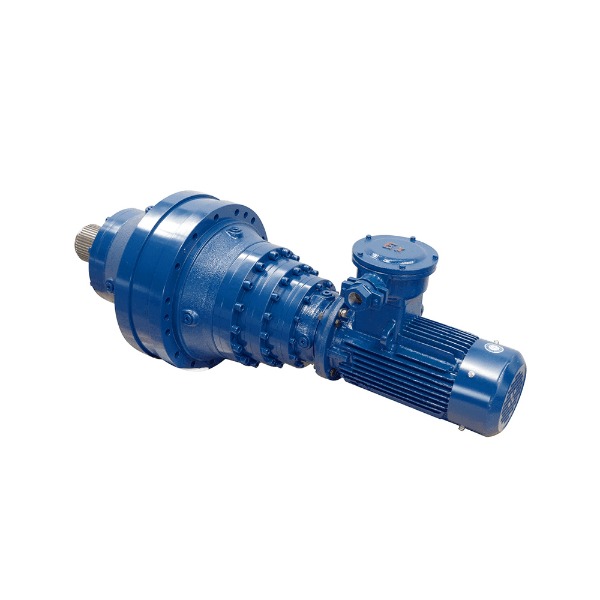

High Torque Coaxial Base-Mounted Planetary Gear Box
Unlike traditional gear systems, planetary arrangements distribute load across multiple gears, offering superior power density. The planetary gear reduction system configuration consists of three main components: the sun gear, planet gears, and ring gear, all working in perfect harmony to achieve remarkable reduction ratios.
When comparing planetary reducers to standard gearboxes, several distinct advantages emerge:
Feature | Planetary Gearbox | Standard Gearbox |
---|---|---|
Load Distribution | Even across multiple gears | Concentrated on few gear teeth |
Efficiency | Typically 95-98% | 85-93% |
Size-to-Torque Ratio | Exceptionally high | Moderate |
Noise Levels | Significantly lower | Higher due to vibration |
The versatility of high-ratio planetary gearboxes allows them to serve numerous industries with demanding power transmission requirements.
Modern manufacturing facilities increasingly rely on planetary systems for robotic arms and precision positioning equipment. The compact planetary gear reducer design enables space-saving installations without sacrificing performance.
Wind turbine manufacturers particularly benefit from the durability and efficiency of planetary systems. The ability to handle fluctuating loads makes them ideal for planetary gearbox for heavy machinery applications in renewable energy.
Creating an effective planetary reduction system requires careful attention to several engineering factors.
The choice between hardened steel, bronze, or composite materials significantly impacts the lifespan of precision planetary reduction gear units. Each material offers distinct advantages:
Proper lubrication is crucial for maintaining the efficiency of planetary systems. The confined space between meshing gears requires specially formulated lubricants that can withstand extreme pressure while minimizing friction losses.
Implementing proper maintenance routines can dramatically increase the operational lifespan of planetary gearboxes.
Regular vibration monitoring helps detect early signs of wear in planetary systems. Advanced sensors can pinpoint which gear stage shows abnormalities, allowing for targeted maintenance before catastrophic failure occurs.
Infrared thermography has proven invaluable for identifying hot spots in operating gearboxes. Abnormal heat patterns often indicate lubrication issues or misalignment problems that need immediate attention.
The field of power transmission continues to evolve with new innovations building upon traditional planetary designs.
Modern planetary reduction gearbox units increasingly incorporate IoT sensors that provide real-time performance data. This connectivity enables predictive maintenance and optimization of operational parameters.
The marriage of planetary gear technology with electric motor designs has created new possibilities for integrated drive solutions. These compact units combine the best aspects of both technologies while eliminating traditional weaknesses.
