Single-Stage Toroidal Worm Gear Reducer: Design, Advantages, and Applications

Understanding the Basics of Single-Stage Toroidal Worm Gear Reducers

Toroidal worm gear reducers represent a significant advancement in power transmission technology, offering unique benefits over conventional worm gear designs. The single-stage configuration provides compact torque conversion in a simple, efficient package that has revolutionized many industrial applications.

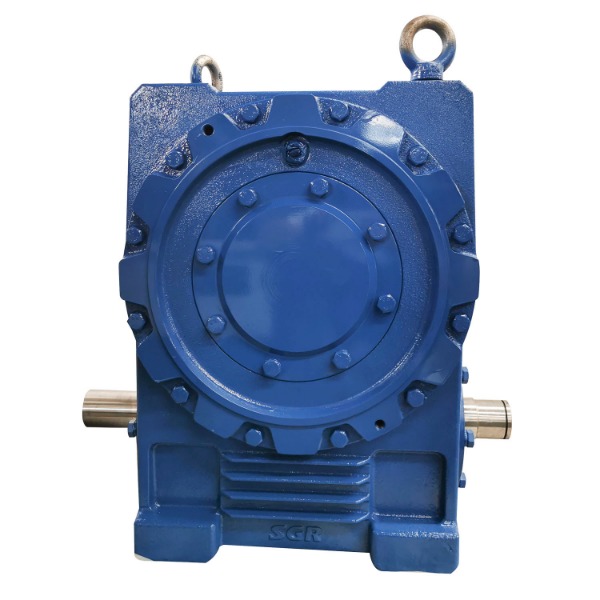

High Efficiency Double Enveloping Worm Gear Reducer

What Makes Toroidal Design Special?

The toroidal shape refers to the doughnut-like curvature of the worm wheel in these reducers. This geometry creates more contact points between the worm and wheel compared to standard designs. While cylindrical worm gears typically have line contact, single-stage toroidal worm gear reducers achieve area contact, distributing load across multiple teeth simultaneously. This fundamental difference brings several advantages:

• Higher load capacity in the same footprint
• Improved efficiency through reduced friction
• Longer service life due to wear distribution
• Smoother operation with less vibration

Key Components and Their Functions

Understanding the anatomy of these reducers helps appreciate their performance characteristics. The primary components include:

• Toroidal worm wheel: The gear with curved teeth that meshes with the worm
• Hourglass worm: The input shaft with a specially profiled thread
• Housing: Precision-machined enclosure maintaining alignment
• Bearings: Support components handling radial and axial loads

Comparing Toroidal Worm Gearboxes to Standard Designs

When evaluating gear reducer options, understanding performance differences helps make informed selection decisions. Below we compare key parameters between toroidal and conventional worm gear reducers.

Efficiency and Energy Savings

The contact mechanics of toroidal designs fundamentally change efficiency characteristics. Where standard worm gears might achieve 50-70% efficiency in single-stage configurations, toroidal worm gearboxes to standard designs typically show 15-25% improvements. This table illustrates typical efficiency ranges:

Load Capacity and Durability

The multi-tooth engagement of toroidal systems dramatically increases load capacity. Testing shows toroidal reducers can handle 30-50% higher torque loads than equivalently sized standard worm gears. This advantage comes from:

• Distributed contact pressures
• Optimized lubrication retention
• Reduced peak stress concentrations

Critical Factors in Selecting Toroidal Speed Reducers for Applications

Proper reducer selection requires evaluating multiple technical parameters against application requirements. These considerations ensure optimal performance and longevity.

Torque and Speed Requirements

Calculating required torque involves analyzing both operational and peak loads. For selecting toroidal speed reducers, engineers should consider:

• Continuous operating torque
• Maximum shock loads
• Input/output speed ranges
• Duty cycle characteristics

Environmental Conditions

Toroidal reducers perform differently under various environmental stresses. Key factors include:

• Temperature extremes affecting lubrication
• Contaminant exposure requiring seals
• Corrosive atmospheres dictating materials
• Mounting orientation impacts on lubrication

Maintenance Best Practices for High-Efficiency Toroidal Gear Drives

While toroidal designs require less maintenance than conventional worm gears, proper care significantly extends service life and maintains performance.

Lubrication Requirements

The unique geometry of high-efficiency toroidal gear drives demands specific lubrication approaches:

• Use synthetic lubricants for high-temperature applications
• Maintain proper oil levels for optimal tooth contact
• Monitor lubricant condition through regular sampling
• Follow manufacturer-recommended change intervals

Alignment and Mounting Checks

Proper installation ensures years of trouble-free operation. Critical checks include:

• Base mounting surface flatness
• Shaft alignment tolerances
• Fastener torque specifications
• Thermal growth considerations

Exploring Compact Toroidal Reducer Applications Across Industries

The unique benefits of single-stage toroidal reducers make them ideal for numerous industrial applications where space and efficiency matter.

Material Handling Systems

In conveyor and lifting equipment, compact toroidal reducer applications shine because:

• High torque density fits space constraints
• Smooth operation reduces product damage
• Efficiency lowers energy costs in continuous operation

Packaging Machinery

The motion control requirements of packaging lines benefit from:

• Precise positioning capabilities
• Repeatable performance over long periods
• Quiet operation in human environments

Future Developments in Toroidal Worm Gear Technology

Ongoing research promises to further enhance the capabilities of these already impressive power transmission components.

Materials Science Advancements

Emerging materials could revolutionize toroidal gear performance:

• Nanostructured surface treatments reducing friction
• Composite materials combining strength and lightness
• Self-lubricating materials for maintenance-free operation

Smart Reducer Concepts

Integration with Industry 4.0 technologies enables:

• Condition monitoring through embedded sensors
• Predictive maintenance algorithms
• Dynamic performance adjustment
