Redefining SGR’s High-Torque Worm Gearbox Solution for Industrial Equipment

In modern machinery manufacturing, especially for small and medium-sized enterprises, the demand for compact, efficient, and high-torque gear transmission solutions is stronger than ever. Applications such as lifting machinery, hoisting systems, conveyors, and precision control mechanisms require gear reducers that not only provide strong torque output and wear resistance, but also offer mechanical reliability and operational safety—especially under conditions involving high reduction ratios or holding loads in place.

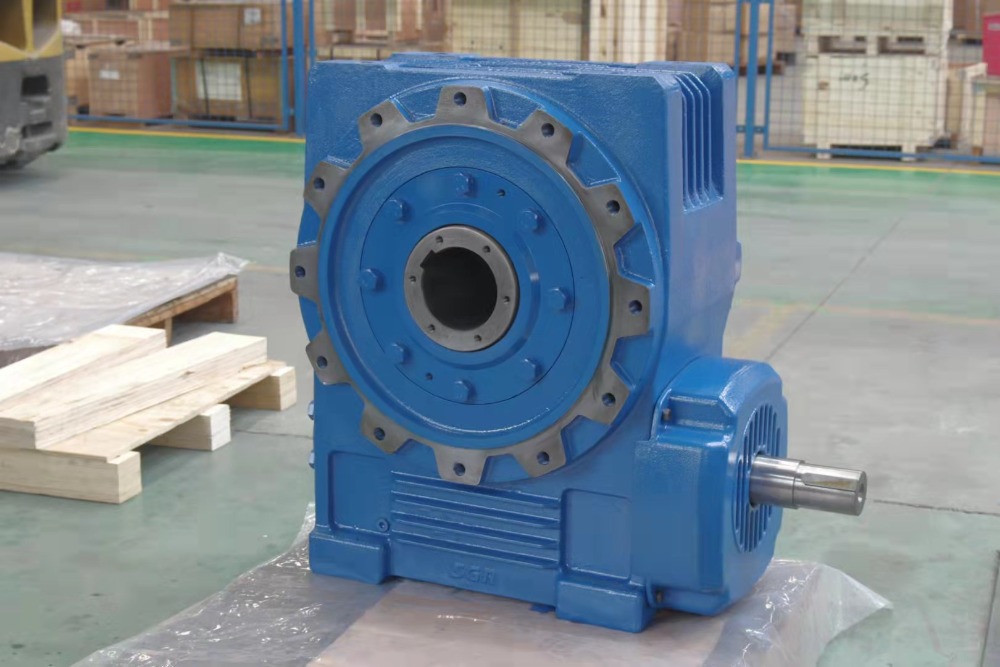

This is where SGR’s high-torque worm gearboxes stand out. Developed through systematic research and technological innovation, our worm gear reducers provide exceptional load capacity, long life, and superior self-locking characteristics—making them an ideal fit for safety-critical applications across a range of industrial sectors.

(1) Development Status of High-Torque Worm Gearboxes: Evolving with Industrial Needs

Worm gear reducers have a long-standing reputation for compact transmission, quiet operation, and self-locking capabilities, making them widely used in lifting, conveying, packaging, and automation equipment. However, traditional cylindrical worm gear sets often suffer from low transmission efficiency, excessive wear, and limited torque capacity—especially when operating at high ratios or under continuous load conditions.

To address these limitations, the global gear industry has been steadily shifting towards advanced worm gear designs, with improvements in:

tooth geometry for enhanced meshing performance，material technology for better surface hardness and wear resistance,manufacturing precision for reduced energy loss and noise.

SGR’s development efforts have kept pace with—and in some areas, exceeded—global trends. Partnering with leading Chinese universities and research institutions, we’ve conducted a comprehensive R&D program covering:Innovative design theory,optimized manufacturing processes and advanced assembly and testing methods.

The result is a new generation of high-performance worm gear reducers, invented and engineered in China, now ready for deployment in demanding industrial applications.

(2) Unique Advantages and Applications of SGR's High-Torque Worm Gear Reducers

SGR’s worm gear reducers are engineered for durability, efficiency, and versatility, with design and performance benchmarks that set them apart from conventional reducers.

Technical Advantages of SGR’s worm gear reducers:

Multi-Tooth Meshing for Enhanced Load Sharing.Unlike standard single-point contact worm drives, our gearboxes feature multi-tooth contact zones, which distribute the load across several teeth simultaneously. This results in:reduced localized stress,increased load capacity and smooth, shock-resistant operation

Premium Materials & Heat Treatment.The worm is made from 20CrMnTi alloy steel, precision carburized, quenched, and ground, ensuring high surface hardness and structural strength.The worm wheel uses high-performance alloy bronze, offering excellent wear resistance, even under high-load and long-duration conditions.

Improved Transmission Efficiency and Service Life.Our optimized tooth design and surface finish lead to significantly higher transmission efficiency compared to traditional cylindrical worm pairs. The gear system maintains its integrity and performance over extended periods of use, reducing downtime and maintenance cost.

Mechanical Self-Locking Performance. Under high reduction ratios, the reducer inherently resists back-driving—a critical feature for lifting, hoisting, or positioning applications. This built-in safety characteristic improves overall machine security and operational control.

Global Interchangeability and Customization.The installation dimensions of SGR’s high-torque worm gearboxes are fully interchangeable with the CAVEX® Worm-Gear Units Type, facilitating easy replacement and upgrading.

We offer customization of key transmission components, including gear ratios, housing materials, mounting configurations, and output shaft designs—ensuring adaptability to each customer’s unique machinery setup.

(3) Application Case: High-Torque Worm Gearbox in Lifting Machinery

A customer in the material handling sector required a high-torque, compact gearbox for integration into a vertical lifting system used in a warehouse automation line. The gearbox needed to Support high static and dynamic loads,offer fail-safe self-locking during vertical load holding,deliver smooth and efficient lifting movement and operate reliably under high duty cycles with minimal maintenance

Why SGR Was Chosen:

Superior Torque and Self-Locking Performance.With a high reduction ratio and precision gear grinding, the SGR worm gearbox ensured reliable vertical motion without the need for additional braking mechanisms.

Long-Term Durability in Load-Bearing Use.The use of high-performance alloy bronze and multi-tooth meshing provided excellent resistance to wear—even after thousands of lift cycles.

Quick Integration and Global Compatibility.Thanks to the interchangeable design with well-known international standards, the customer was able to seamlessly integrate the gearbox into existing equipment with zero structural modification.

Customization Support.SGR customized the input shaft design and mounting flange orientation to suit space constraints and improve assembly efficiency.

As a result, the customer reported 40% reduction in gearbox maintenance frequency,20% improvement in energy efficiency and enhanced lifting safety and positioning precision.

For small and medium-sized machinery manufacturers, SGR’s high-torque worm gear reducers offer a next-generation solution backed by scientific research, innovative design, and real-world performance. Whether you need stable torque delivery, mechanical self-locking, or a durable, high-efficiency drive for heavy-duty equipment, our gearboxes meet the challenge.

By combining cutting-edge Chinese engineering with globally recognized interchangeability standards, SGR is delivering worm gearbox technology that empowers manufacturers to go further—with less risk, more flexibility, and longer service life.(Author:SGR, Angie Zhang)
