Understanding Double-Enveloping Worm Gearboxes: A Deep Dive into Design and Application

In the world of power transmission, achieving high torque and smooth operation in a compact space is a constant engineering challenge. Among the various solutions, the double-enveloping worm gearbox stands out as a unique and highly effective design for demanding applications. Unlike standard worm gears, this configuration offers significantly increased surface contact between the worm and the gear, leading to superior load-bearing capacity and durability. This article provides a comprehensive exploration of double-enveloping worm gear technology, its advantages, ideal use cases, and critical selection criteria to help you understand its pivotal role in modern machinery.

What is a Double-Enveloping Worm Gear Drive?

A double-enveloping worm gear drive is a specialized type of gear system where both the worm (the screw) and the worm gear (the wheel) are throated or hourglass-shaped. This means the worm wraps around the gear, and simultaneously, the gear envelops the worm. This double-enveloping action creates a much larger area of contact between the mating teeth compared to a single-enveloping or cylindrical worm gear set. The primary benefit of this intricate design is its ability to transmit exceptionally high torque loads without compromising on the compactness inherent to worm gear designs. The complex geometry requires precision manufacturing but rewards with unparalleled performance in harsh environments.

• Increased Contact Area: The throated design allows multiple teeth to share the load simultaneously, drastically reducing stress on individual gear teeth.
• Precision Manufacturing: Producing these components requires advanced CNC machinery and strict quality control to ensure perfect meshing and optimal performance.
• Superior Load Distribution: The load is not concentrated on a single point but is distributed across a broader surface, minimizing wear and tear.

Key Advantages of Double-Enveloping Worm Gears

The unique geometry of the double-enveloping worm gearbox translates into several distinct operational advantages that make it the preferred choice for heavy-duty applications. These gearboxes are engineered to excel where others might fail, offering a blend of power, reliability, and longevity. The following points detail the core benefits that set this gearbox design apart from its counterparts.

• Higher Torque Capacity: The enlarged contact area enables the system to handle shock loads and sustain high torque output more effectively than standard worm gears.
• Enhanced Durability and Longevity: With reduced stress per unit area, the components experience less wear, leading to a longer operational life and reduced maintenance needs.
• Compact Design for High Reduction Ratios: They provide high single-stage reduction ratios in a relatively small package, saving valuable space in machinery layout.
• Quieter Operation: The smooth, multi-tooth engagement often results in quieter and smoother performance, which is critical in noise-sensitive environments.

Comparison: Double-Enveloping vs. Standard Worm Gears

When selecting a gearbox, understanding the performance differences between a double-enveloping and a standard cylindrical worm gear is crucial. The table below outlines the key distinctions that impact application suitability.

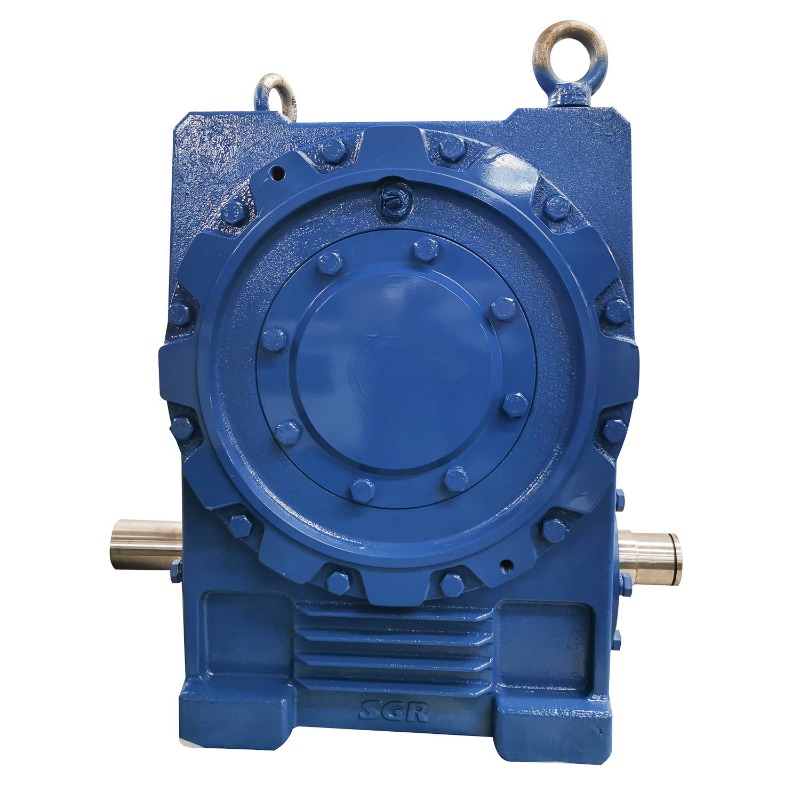

High Efficiency Double Enveloping Worm Gear Reducer

Optimizing Performance with Double-Enveloping Gear Design

To fully leverage the capabilities of a double-enveloping gear design, several factors must be meticulously considered. Optimization isn't just about selecting the gearbox; it's about integrating it correctly into a system. Proper alignment, lubrication, and thermal management are paramount to achieving the promised performance and service life. Ignoring these aspects can negate the inherent advantages of this robust design.

• Precision Alignment: Misalignment is a primary cause of failure. These units must be installed with extreme care to ensure the worm and gear are perfectly positioned relative to each other.
• Advanced Lubrication Systems: The high sliding contact generates heat. A dedicated lubrication system with high-quality, high-viscosity oil is essential to reduce friction, dissipate heat, and prevent wear.
• Thermal Management: For continuous high-load operations, external cooling methods like fans or heat exchangers may be necessary to maintain optimal operating temperatures.
• Material Selection: The worm is typically made from hardened steel, while the gear is often made from a softer, bronze alloy to manage friction and wear characteristics effectively.

Industrial Applications of Heavy-Duty Worm Gearboxes

The robust nature of heavy-duty worm gearboxes makes them indispensable in industries where equipment is pushed to its limits. Their ability to provide massive torque in a compact footprint and withstand sudden shock loads makes them a cornerstone of heavy machinery. From moving immense weights in mining to precise positioning in aerospace, these gearboxes are the unsung heroes of motion control.

• Mining and Mineral Processing: Used in conveyor drives, crushers, and hoists where reliability under extreme load is non-negotiable.
• Construction Equipment: Essential for excavator swing drives, crane luffing mechanisms, and concrete mixer drums.
• Material Handling:
• Steel Mills and Rolling Mills: Employed in roller tables and manipulators that handle red-hot metal under tremendous force.
• Aerospace and Defense: Found in missile launch systems and satellite positioning mechanisms that require precise movement under high stress.

Selecting a High-Torque Reduction Gearbox

Choosing the right high-torque reduction gearbox is a critical decision that impacts the efficiency, cost, and reliability of your entire system. The selection process goes beyond just reviewing torque ratings and involves a holistic look at the application's requirements, environmental conditions, and lifecycle costs. A methodical approach ensures you get a gearbox that is not just adequate, but optimal for your specific needs.

• Define Load Characteristics: Analyze the nature of the load (constant, variable, shock), its magnitude, and the required starting torque.
• Determine Reduction Ratio and Output Speed: Calculate the necessary ratio to achieve the desired output speed from your input motor's RPM.
• Assess Environmental Conditions: Consider factors like ambient temperature, presence of dust or moisture, and available space for installation.
• Evaluate Service Factor: Always select a gearbox with a service factor that accounts for potential overloads and the severity of your application.
• Consider Lifecycle Cost: Look beyond the initial purchase price. Factor in expected maintenance, energy efficiency, and meandown time costs.

Key Specifications to Review

When reviewing manufacturer datasheets for a worm gear speed reducer, pay close attention to these critical specifications to ensure a perfect match for your application.

FAQ

What is the main difference between a single and double-enveloping worm gear?

The fundamental difference lies in their geometry. In a single-enveloping (or cylindrical) worm gear set, only the worm gear is throated to partially wrap around the cylindrical worm. In a double-enveloping worm gearbox, both the worm and the gear are throated. This creates a hourglass-shaped worm that wraps around the gear, and a gear that simultaneously envelops the worm. This double-enveloping action results in a significantly larger contact area between the meshing teeth, which is the key to its higher torque capacity and durability compared to the single-enveloping design.

Why are double-enveloping worm gearboxes more expensive?

The higher cost of a double-enveloping worm gearbox is directly attributed to its complex manufacturing process. The throated, hourglass-shaped geometry of both the worm and the gear is extremely difficult to produce. It requires specialized, precision CNC machinery and stringent quality control to ensure that the two components mesh perfectly across the large contact area. The additional machining time, expertise, and inspection processes involved in creating this precise conjugate action contribute to a higher initial cost than standard worm gearboxes, though this is often justified by their superior performance and longevity in demanding applications.

How do I maintain a double-enveloping worm gear drive?

Maintaining a double-enveloping worm gear drive is centered on proper lubrication and condition monitoring. Firstly, it is critical to use the exact type and viscosity of lubricant specified by the manufacturer, as the high sliding contact is entirely dependent on a robust oil film. Regularly check oil levels and look for signs of contamination or degradation. Secondly, monitor operating temperature and listen for changes in sound, as overheating or unusual noise can indicate misalignment, overload, or lubrication issues. Finally, adhere to a strict preventive maintenance schedule for oil changes and inspections to proactively address wear and ensure maximum service life.

Can a worm gearbox be used for backstopping or holding a load?

Yes, one of the inherent advantages of any worm gear design, including the double-enveloping type, is its natural ability to prevent reverse driving. Due to the high friction and the specific angle of the worm thread, the system is typically self-locking. This means that a force applied to the output shaft (the gear) cannot back-drive the input shaft (the worm). This feature makes worm gear speed reducers excellent for applications like conveyors on inclines, hoists, and lifts where a failure-safe holding mechanism is required to prevent the load from descending uncontrollably if power is lost.

What are the signs of failure in a heavy-duty worm gearbox?

Recognizing early signs of failure in a heavy-duty worm gearbox can prevent catastrophic downtime. Key indicators include a noticeable increase in operating temperature, which often points to lubrication problems or overload. Unusual noises such as grinding, knocking, or excessive whining suggest wear, pitting, or misalignment of the gear teeth. Visible oil leaks around seals indicate seal failure, which can lead to inadequate lubrication. Finally, a loss of positional accuracy or an increase in backlash (free movement) in the output shaft are clear mechanical signs of internal wear that require immediate investigation and maintenance.
