Key Parameters for Selecting a Cylindrical Worm Gear Reducer

Choosing the right Cylindrical Worm Gear Reducer is critical for the efficiency and longevity of any mechanical system. It's not just about finding a component that fits; it's about matching the reducer's capabilities with the specific demands of your application. This guide will walk you through the essential parameters to consider, from power and speed to material and lubrication, ensuring you make an informed decision.

Understanding Load and Power Requirements

The first step in selecting a Cylindrical Worm Gear Reducer is to accurately assess the power and torque requirements of your application. Mismatched components can lead to premature failure, inefficiency, or even system damage. A detailed understanding of these parameters ensures the reducer can handle the workload without being overstressed.

Input Power and Output Torque

Input power is the energy supplied to the reducer, typically from a motor. The output torque is the rotational force the reducer delivers to the driven machine. These two parameters are inversely related through the gear ratio. Understanding this relationship is crucial for proper sizing.

• Input Power: This is the power supplied by the motor. It is typically measured in kilowatts (kW) or horsepower (HP).
• Output Torque: This is the twisting force the reducer transmits to the load. It is measured in Newton-meters (Nm) or pound-inches (lb-in).
• Comparison: A higher input power and a larger reduction ratio will generally result in a higher output torque.

Input and Output Speed

The speeds at which the reducer operates are just as important as the power. The input speed is determined by the motor's RPM, while the output speed is a direct result of the gear ratio. This relationship is fundamental to achieving the desired operating speed for your application.

• Input Speed: The speed of the motor shaft connected to the worm.
• Output Speed: The speed of the gear shaft, which is the input speed divided by the gear ratio.
• Relationship: A higher gear ratio will result in a lower output speed. For instance, an input speed of 1450 RPM and a 30:1 gear ratio will produce an output speed of approximately 48.3 RPM. This is key for speed reduction calculation.

Exploring Gear Ratios and Efficiency

The gear ratio and overall efficiency are the heart of any Cylindrical Worm Gear Reducer. A higher ratio provides greater torque multiplication but often comes with a trade-off in efficiency. Understanding this balance is essential for applications requiring both high force and energy conservation.

Gear Ratio and Its Implications

The gear ratio is the ratio of the number of teeth on the worm wheel to the number of starts on the worm. It directly influences the speed reduction and torque increase. For applications like small worm gearboxes, a high ratio can achieve significant speed reduction in a compact form.

• Low Ratio (e.g., 5:1 to 30:1): Offers higher efficiency but less torque multiplication.
• High Ratio (e.g., 60:1 to 100:1): Provides high torque output and significant speed reduction. This is a common requirement in a worm gearbox for conveyor belt.

Efficiency and Heat Generation

Efficiency is the ratio of output power to input power. Worm gears are known for lower efficiency compared to other gear types, especially at high ratios. This lost energy is converted into heat, which can affect the reducer's performance and lifespan. Understanding this is key for a worm gear reducer lubrication guide, as proper lubrication helps manage this heat.

• Efficiency: Varies significantly with the gear ratio and the lead angle of the worm. Higher ratios lead to lower efficiency.
• Heat: A direct consequence of inefficiency. Excessive heat can degrade lubricant, damage seals, and shorten component life.

Materials, Installation, and Maintenance

The physical characteristics and maintenance requirements of a Cylindrical Worm Gear Reducer are just as important as the operational parameters. The materials used, the installation method, and the lubrication schedule all contribute to the reducer's overall performance and reliability.

Materials and Construction

The choice of materials directly impacts the reducer's durability and load-bearing capacity. The worm is typically made of hardened steel, and the worm wheel is made of bronze, creating a low-friction, high-wear-resistant pairing.

• Worm: Often made of case-hardened steel, ground to a high finish to reduce friction.
• Worm Wheel: Typically cast bronze, which is softer than the worm to minimize wear on the more expensive component.
• Housing: Usually cast iron or aluminum, chosen for its rigidity and heat dissipation properties. Aluminum is lighter, while cast iron is more robust.

Mounting and Lubrication

Proper mounting and a consistent lubrication schedule are essential for longevity. Mounting can be a universal flange mount, foot-mounted, or a shaft-mounted design. The lubrication method, whether grease-filled or oil-filled, is critical for reducing friction and managing heat.

Mounting Orientation

• Foot-Mounted: The most common type, with the reducer bolted to a flat surface.
• Flange-Mounted: Ideal for applications where the reducer needs to be attached directly to a machine or motor face.
• Shaft-Mounted: The reducer is mounted directly onto the driven shaft.

Lubrication and Maintenance

• Lubricant Type: Depends on the operating speed, temperature, and load. Synthetic oils are often used for high-temperature or high-speed applications.
• Maintenance Schedule: Regular checks of oil levels and scheduled oil changes are vital to prevent premature wear. This is a key part of any worm gear reducer maintenance plan.

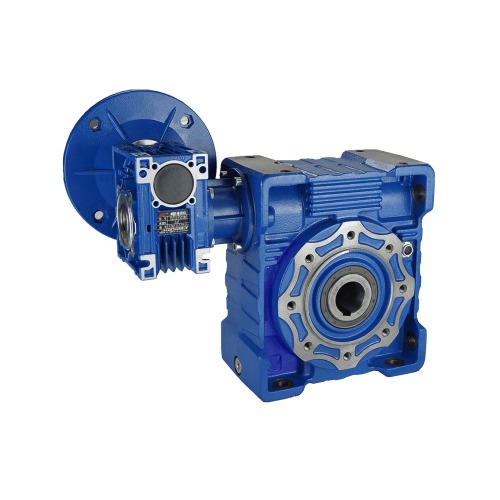

Double-Stage Cylindrical Worm Gearboxes
