2 stage planetary gearbox：SGR's two-stage planetary gearbox in mining machinery

In the field of industrial machinery, achieving high torque output within a compact space is a common challenge. For small and medium-sized equipment manufacturers, especially those in industries such as horizontal directional drilling, mining machinery, and wind power, the two-stage planetary gearbox has emerged as a powerful and reliable transmission solution.

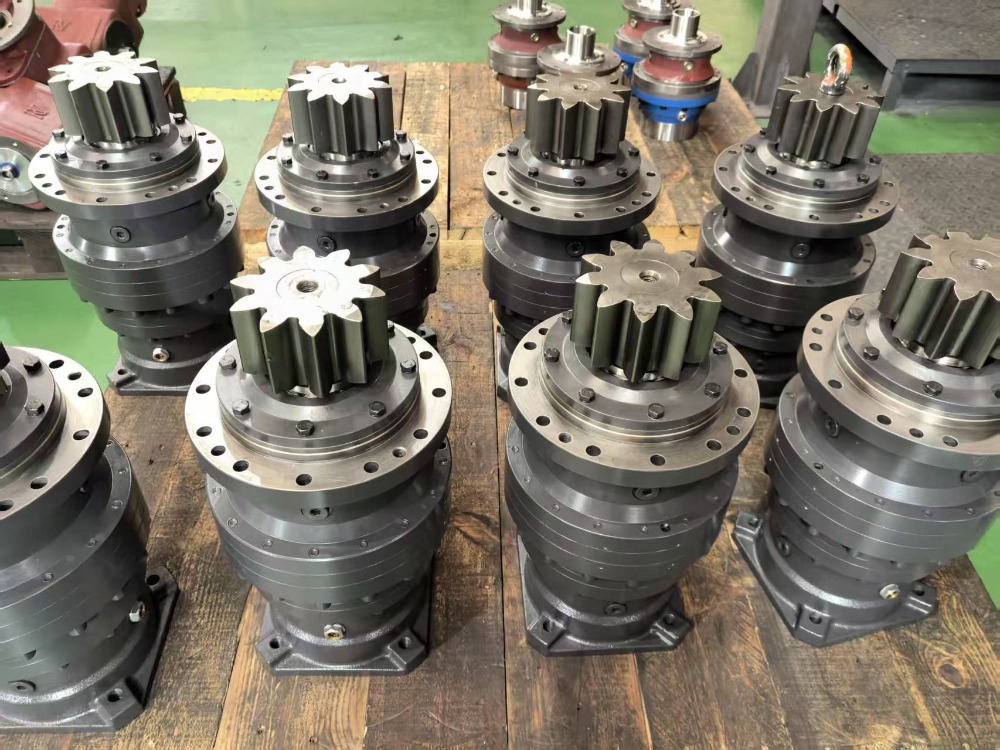

At SGR (Shanghai SGR Heavy Industry Machinery Co., Ltd.), we specialize in designing and manufacturing planetary gear reducers tailored for a wide range of industrial applications. Our flagship N Series Planetary Gearbox can be configured as single-stage, two-stage, or multi-stage units, depending on customer needs. Among these, the two-stage planetary gearbox stands out for its superior torque capacity, compact design, and adaptability to complex working environments.

（1）Understanding the Difference: Two-Stage vs. Single-Stage Planetary Gearboxes

To better appreciate the value of a two-stage planetary gearbox, it's essential to understand how it differs from its single-stage counterpart.

A single-stage planetary gearbox is composed of one set of sun gear, planetary gears, and ring gear, it typically offers a gear ratio between 3:1 and 10:1. The singe-stage planetary gearbox is known for its high efficiency (often over 95%) and simple structure and is best suited for applications requiring moderate torque and speed reduction.

A two-stage planetary gearbox incorporates two sets of planetary gear stages in series and can achieves a much higher gear ratio—usually between 10:1 and 100:1—without increasing the physical size，and it distributes the load across more gear teeth, enhancing durability and reducing wear.

The two-stage planetary gearbox is ideal for heavy-duty applications where both high torque and compact size are critical.The two-stage design allows for greater torque output, higher load capacity, and improved transmission stability, making it a preferred choice for advanced industrial applications.

(2) Unique Advantages and Industrial Applications of SGR's Two-Stage Planetary Gearbox

SGR's two-stage planetary gearbox is engineered to meet the rigorous demands of modern industrial environments. Built with 20CrMnTi alloy steel, our gears undergo carburizing, quenching, and precision grinding, ensuring exceptional hardness, wear resistance, and long service life.

Key Features:

Multi-Tooth Load Distribution: Ensures smooth operation and extends the life of the gearbox.

High Mechanical Efficiency: Up to 96%, minimizing energy loss and reducing operational costs.

Modular Design: Offers various input and output configurations (shaft input, flange input, hollow shaft output, etc.) for flexible integration.

High Torque Density: Delivers powerful output in a compact form factor, ideal for space-constrained applications.

Customization Capabilities: Supports customer-specific design in terms of mounting positions (M1–M6), gear ratios, and connection interfaces.

Application Fields:

Trenchless Horizontal Directional Drilling (HDD): Provides stable, high-torque output for drill head propulsion and rotation.

Mining Machinery: Powers crushers, conveyors, and hoists under heavy load conditions.

Wind Power Equipment: Used in yaw and pitch control systems for precise wind direction adjustment.

Agricultural Machinery: Enhances performance in tractors, harvesters, and other power-intensive equipment.

Textile and Rubber Machinery: Ensures smooth and consistent operation in high-precision manufacturing.

(3) Case : SGR Two-Stage Planetary Gearbox in Mining Machinery

A leading mining equipment manufacturer in Hubei Province, China, faced challenges in upgrading their belt conveyor drive system. The existing gearbox was unable to handle the high torque demands of continuous operation under heavy load conditions, resulting in frequent breakdowns and increased maintenance costs.

After evaluating multiple suppliers, the customer selected SGR's two-stage planetary gearbox for its superior torque capacity, compact design, and reliability.

Custom Configuration:

Gear Ratio: 45:1

Output Torque: 4,500 Nm

Input Type: Flange-mounted servo motor connection

Output Type: Solid shaft with keyway

Mounting Position: M2 (flange output down)

Customer Feedback:

Improved Reliability: The gearbox has operated continuously for over 12 months without any performance degradation.

Enhanced Efficiency: The mechanical efficiency of 96% significantly reduced power consumption.

Reduced Downtime: Modular design made maintenance easier and faster, cutting repair time by 40%.

Cost-Effective Solution: Delivered performance comparable to imported brands at a 30% lower cost.

This real-world application clearly demonstrates the practical advantages of SGR's two-stage planetary gearbox in demanding environments like mining.

As industrial machinery becomes more complex and demanding, the need for high-performance, high-reliability transmission solutions continues to grow. SGR's two-stage planetary gearbox not only meets but exceeds these expectations with its advanced design, superior materials, and customizable configurations.

Whether you're building horizontal directional drilling rigs, mining conveyors, or wind turbine yaw systems, SGR offers a robust, efficient, and cost-effective transmission solution tailored to your specific needs.

Choose SGR—your trusted partner in planetary gear reduction technology.( Author,SGR, Angie Zhang)
