What is the double enveloping worm gear reducer?

In the family of mechanical transmission devices, the planetary gear reducer is like a dazzling pearl, shining brightly and attracting the attention of the machinery industry. When it comes to reducers, the first thing that comes to mind is the planetary gear reducer. However, the  double enveloping worm gear reducer is also an indispensable "dark horse" product in the field of mechanical transmission.

So what is the double enveloping worm gear reducer? And how was it developed? In this article, SGR would like to share with you some knowledge about the double enveloping worm gear reducers.

 (1) The history of the double enveloping worm gear reducer.

When it comes to double enveloping worm gear reducers, we have to mention plane worm gear transmission.

As early as 1922, plane worm gear transmission was produced in the United States. At that time, it was mainly used for precision indexing, such as astronomical telescopes, gear measuring instruments, circular line engraving machines, etc., and only large transmission ratios were applicable at that time.

In 1951, Sato from Japan invented the helical plane worm gear transmission, which expanded from large transmission ratios to small and medium transmission ratios.

In China, the research on planar worm gears started in the early 1960s, when the Mechanical Science Research Institute of the First Ministry of Machine Building Industry began research. Since then, the institute has overcome many technical difficulties, continuously reducing the center distance of the planar turbine pair and the diameter of the worm gear, making the worm gear more and more precise.

In 1971, the Machinery Plant of Shougang Group in China created the first set of plane enveloping worm gears based on the manufacturing of helical plane worm gears, and officially used them in industrial production. Therefore, the double enveloping worm gear reducer is undoubtedly a transmission device invented by the Chinese.

(2) Advantages of  the double enveloping worm gear reducers

The double enveloping toroidal worm gear reducer is mainly composed of a plane double enveloping toroidal worm, a worm wheel and a housing. The plane double enveloping toroidal worm uses a plane as the parent surface, and through relative circular motion, includes the tooth surface of the toroidal worm, and then uses the tooth surface of the worm as the parent surface, and envelops the tooth surface of the worm wheel through relative motion.

Compared with cylindrical worms, the double enveloping toroidal worm gear reducer has two obvious advantages. One is the large load-bearing capacity, because the outer contour generatrix of the double enveloping toroidal worm determines that more teeth can enter the meshing, increasing the contact area and reducing the tooth surface pressure.

The other one advantage of the double enveloping toroidal worm reducer is its high efficiency. In the double enveloping toroidal worm reducer, the tooth surface of the worm is precisely ground after hardening, both the tooth surface hardness and tooth surface roughness level has been improved, which can achieve a very high tooth shape accuracy. And because the tooth surface contact area is large and the total length of the contact line is increased, the efficiency can be greatly improved.

(3) Facts about SGR’S double enveloping worm gear  reducer

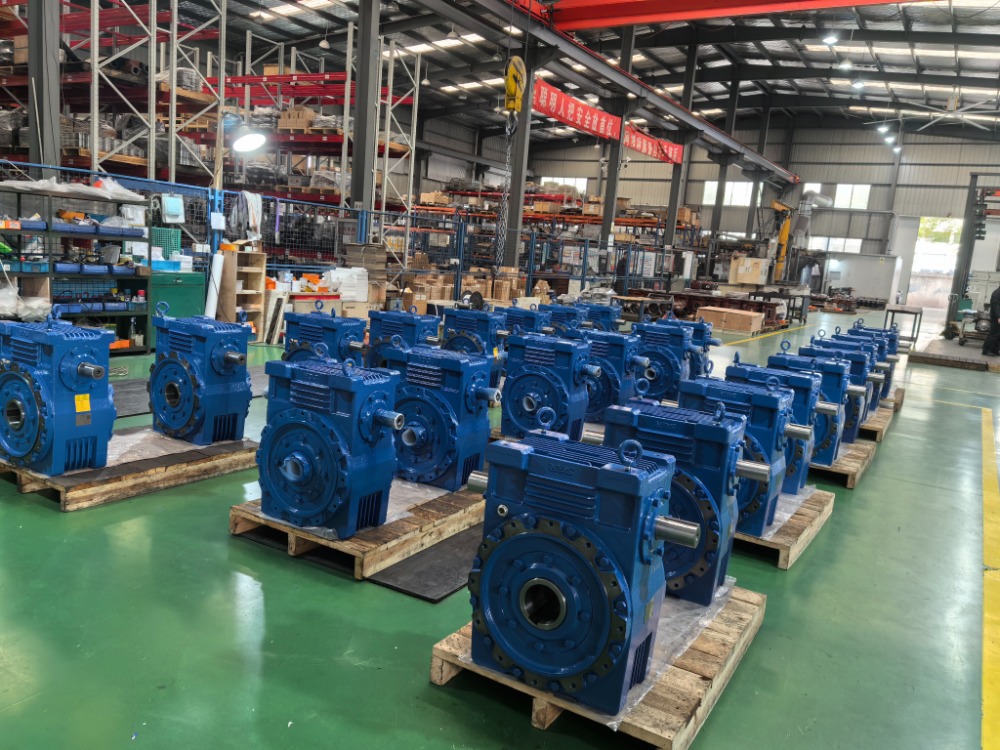

As a pioneer in the field of mechanical transmission, the planetary gear reducer manufacturer SGR also designed and produced the C series double enveloping worm gear reducer.

 This double enveloping toroidal worm gear reducer is processed by grinding after carburizing and quenching with 20CrMnTi, and the worm wheel is made of high-performance alloy bronze, which can maintain long-term wear resistance, high transmission efficiency and long life. Compared with the cylindrical worm and worm wheel pairs of the same specifications, the load-bearing capacity and transmission efficiency are significantly improved. Under the condition of large speed ratio, it has mechanical self-locking performance, which can effectively improve the safety performance of the machinery.

The development trend of double enveloping worm reducer products is miniaturization, high speed, low noise and high reliability. The double enveloping worm reducer of SGR, which has high efficiency, high wear resistance, long service life and high reliability, and is constantly innovating in design, process, production and assembly, will surely be favored by the market.（Author: SGR, Angie Zhang）
