The secrets of gearbox manufacturing

As a product manager at SGR , a famous Chinese gearbox company with over 15 years of expertise in gear transmission systems—I’ve witnessed how meticulous engineering transforms raw steel into mission-critical power solutions.

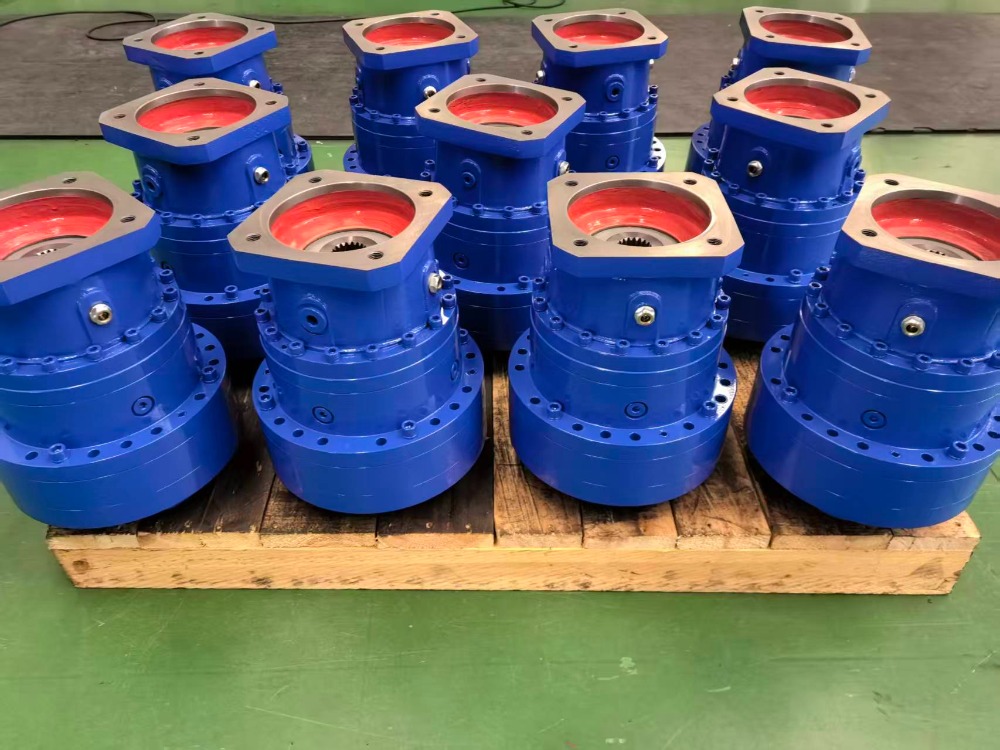

Our N-series planetary gearboxes, comprising hundreds of models, are trusted across demanding sectors including engineering machinery, mining, marine auxiliary systems, metallurgy, rubber processing, and textile printing.

But what truly sets SGR apart isn’t just scale—it’s the rigor embedded in every stage of manufacturing.From material selection to final validation, gearbox production is a symphony of metallurgy, precision machining, and quality control. Here, we reveal the core secrets behind SGR’s reliable, high-performance planetary reducers.

Raw material selection: the foundation of durability

The journey begins long before machining—with the right steel. For critical components like the sun gear, planet carrier, and internal ring gear, SGR exclusively uses high-grade alloy structural steels such as 20CrMnTi. This material offers exceptional hardenability and fatigue strength, essential for withstanding cyclic loads and shock impacts common in heavy industrial environments.Every batch undergoes spectral analysis and ultrasonic inspection upon arrival, ensuring zero internal defects. Because in high-torque applications, even microscopic impurities can lead to premature failure. At SGR, we believe: performance starts at the molecular level.

Rough machining + heat treatment: shaping strength

Once verified, raw blanks undergo precision forging to align grain flow and enhance mechanical integrity. This is followed by rough turning and milling on CNC centers to achieve near-net shapes—preserving optimal material structure while preparing for thermal processing.

The real transformation occurs during heat treatment. Components are subjected to controlled-atmosphere carburizing and quenching, followed by low-temperature tempering. This process delivers a hardened surface (HRC 58–62) for wear resistance, while retaining a tough, ductile core that absorbs impact without cracking.This dual-property profile is non-negotiable in applications like mining conveyors or marine winches, where sudden load spikes are routine. SGR’s multi-chamber heat treatment lines ensure carbon potential accuracy within ±0.05%, minimizing distortion and maximizing consistency.

Finish machining: where microns define excellence

Post-heat treatment, parts enter the high-precision finishing phase—the heart of gearbox refinement.Gears are ground on advanced CNC profile grinding machines, achieving tooth accuracy up to AGMA 12 .This ensures smooth meshing, minimal transmission error, and noise levels below 85 dB—even under full load.

Besides, SGR is equipped with a four-axis complex surface CNC grinding machine capable of handling not only standard involute gears but also intricate geometries like toroidal worm profiles. This versatility allows us to maintain geometric fidelity across our entire product range, from compact N200 units to massive N885 models rated up to 540,000 N·m.Such precision directly translates to higher efficiency (>96%), reduced vibration, and extended service life—key differentiators in markets where downtime costs thousands per hour.

 Assembly & final validation: engineering confidence into every unit

Assembly takes place in a climate-controlled workshop, where technicians follow standardized work instructions to install bearings, seals, and shafts. Critical parameters—such as backlash bearing preload, and concentricity—are monitored in real time using digital torque and displacement sensors.But assembly is only half the story. Every N-series reducer undergoes rigorous performance testing before shipment:

No-load run-in: Verifies smooth rotation and baseline noise.

Full-load endurance test: Simulates real-world conditions to validate temperature rise, efficiency, and vibration.

Dimensional inspection: Coordinate Measuring Machines (CMM) confirm critical mounting and alignment dimensions.

Sealing integrity check: Ensures zero leakage under thermal cycling.

Only units passing all criteria receive certification and packaging. Each gearbox is labeled with a unique QR code, enabling full lifecycle traceability—from steel mill to end-user site.

At SGR, we don’t just manufacture gearboxes; we engineer trust. Our N-series planetary reducers succeed not because of a single breakthrough, but through disciplined execution across every link in the value chain—from material science to final validation.

In an era where “good enough” is no longer acceptable, SGR remains steadfast in delivering import-replacement quality with local support, modular flexibility, and proven durability. Whether powering a tunnel boring machine or a ship’s deck crane, our gearboxes operate quietly, efficiently, and reliably—because in heavy industry, there are no second chances.That’s the real secret of gearbox manufacturing: precision isn’t optional—it’s everything.(Author, SGR, Angie Zhang)
